Direct Answer

Fire alarm zoning is the organised division of a facility into identifiable areas so that an alarm can be located and managed effectively. The zoning philosophy should align with the approved fire strategy, building layout, occupancy, fire compartments, detection architecture and emergency-response requirements.

1. Engineering Overview

Fire alarm zoning is the organised division of a protected facility into identifiable areas to support fire detection, alarm indication, emergency response, Cause & Effect operation and system management. The zoning philosophy should be established from the approved fire strategy, building layout, occupancy, fire compartments, detection architecture and emergency response requirements.

2. Basic Zoning Architecture

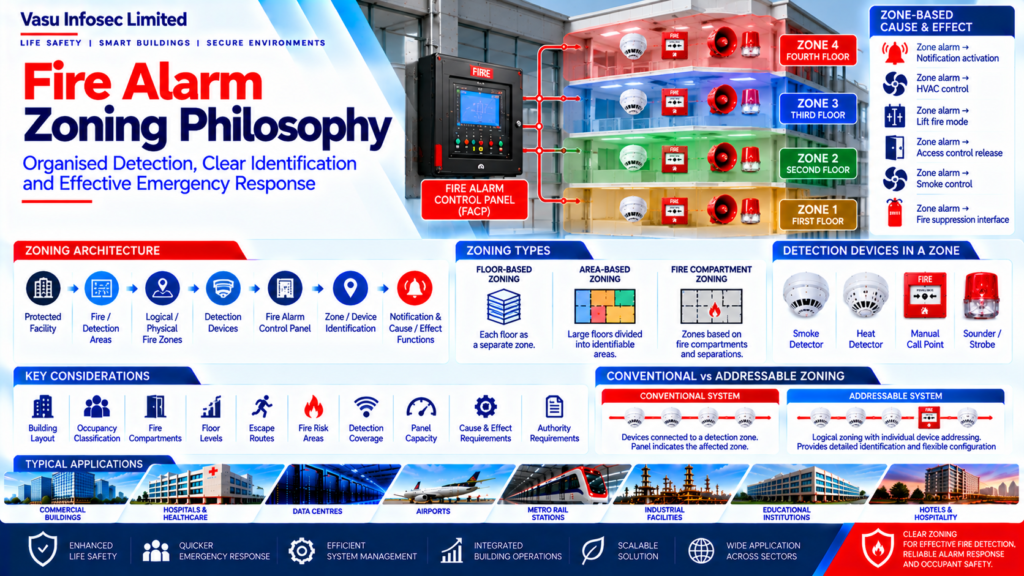

Protected Facility → Fire / Detection Areas → Logical / Physical Fire Zones → Detection Devices → Fire Alarm Control Panel → Zone / Device Identification → Notification & Cause / Effect Functions

3. Purpose of Fire Alarm Zoning

The primary purpose of zoning is to provide clear and useful identification of the area associated with an alarm or event. A properly developed zoning philosophy supports rapid response, easier system operation, maintenance, event investigation and coordination with other fire protection systems.

4. Physical & Logical Zoning

Physical zoning may be based on identifiable building areas, floors, compartments or other defined locations. Logical zoning may be configured within an addressable fire alarm system through software programming while maintaining individual device identification.

5. Zoning Design Inputs

The zoning philosophy should consider:

• Building layout
  Occupancy classification
  • Fire compartments
  • Floor levels
  • Escape routes
  • Fire risk areas
  • Detection coverage
  • Fire alarm panel capacity
  • Emergency response strategy
  • Cause & Effect requirements
  • Authority requirements

6. Floor-Based Zoning

Multi-storey buildings may use floor or area-based zoning to provide clear identification of the affected level. The final arrangement should be coordinated with the building layout, fire strategy and approved fire alarm drawings.

7. Area-Based Zoning

Large or complex floors may be divided into smaller identifiable areas. Area zoning should support practical emergency response without creating excessive fragmentation that reduces operational clarity.

8. Fire Compartment Considerations

Fire compartments and fire-rated separations should be considered when establishing zones. The zoning arrangement should provide meaningful identification of the affected fire compartment or area where required by the approved design.

9. Detection Devices & Zoning

Smoke detectors, heat detectors, beam detectors, flame detectors, manual call points and other initiating devices should be associated with the appropriate physical or logical zone. Addressable systems may retain individual device identification within each logical zone.

10. Manual Call Point Zoning

Manual Call Points should be associated with the appropriate zone or programmed location so that operation provides clear information to the Fire Alarm Control Panel and emergency response personnel.

11. Addressable System Zoning

In an addressable system, zoning is generally implemented through programmed logical groups while individual devices retain unique addresses. This provides both detailed device identification and practical area-based alarm management.

12. Conventional System Zoning

In a conventional system, zoning is closely associated with the physical detection circuits connected to the control panel. Operation of a device normally results in identification of the affected detection zone.

13. Cause & Effect & Zoning

Zoning may form an input to the approved Cause & Effect Matrix.

Typical zone-based actions may include:

• Zone alarm → notification activation
  Zone alarm → HVAC control
  • Zone alarm → lift fire mode
  • Zone alarm → access control release
  • Zone alarm → smoke control
  • Zone alarm → fire suppression interface

14. Zoning & Notification

Notification strategies may be programmed according to the approved zoning philosophy. Depending on the fire strategy, an alarm may activate local notification, wider-area notification or a programmed evacuation sequence.

15. Zoning & Interfaces

The zoning philosophy should be coordinated with connected systems such as HVAC, lifts, access control, fire suppression, smoke control, IBMS / BMS and central monitoring systems where applicable.

16. Testing & Commissioning

Zoning should be verified during testing and commissioning.

Testing may include:

• Detector activation by zone
  Manual call point activation
  • Panel zone / device indication
  • Notification operation
  • Cause & Effect verification
  • Interface operation
  • Event recording
  • Reset and restoration

17. Common Engineering Considerations

Engineering review should verify:

• Clear zone boundaries
  Consistent zone naming
  • Accurate device allocation
  • Building and fire compartment coordination
  • Panel programming
  • Cause & Effect logic
  • Notification strategy
  • Interface requirements
  • Operator usability
  • Future modification requirements

18. Documentation

Zoning documentation should include, as applicable:

• Fire alarm zoning drawings
  Zone schedule
  • Device schedule
  • Panel programming information
  • Cause & Effect Matrix
  • Input / Output schedule
  • Interface schedule
  • Testing records
  • Commissioning records
  • As-built documentation

19. Engineering Objective

The engineering objective is:

Clear Zone Definition → Accurate Device Allocation → Rapid Alarm Location → Effective Emergency Response → Correct Cause & Effect → Coordinated Interfaces → Verified Testing → Maintainable Fire Alarm Zoning → Reliable Life-Safety System Operation

Frequently Asked Questions

What is fire alarm zoning?

It is the organised division of a facility into identifiable areas to help locate alarms and coordinate system response.

What is the difference between physical and logical zoning?

Physical zoning is based on defined locations such as floors or compartments. Logical zoning is configured in the fire alarm system, particularly in addressable systems, and can retain individual device identification.

How does zoning differ in addressable and conventional systems?

Addressable systems generally use programmed logical groups while retaining unique device addresses. Conventional systems identify the affected detection zone associated with a circuit.

Does a zone alarm always activate the entire building’s notification system?

Not necessarily. Notification may be local, wider-area or part of a programmed evacuation sequence, depending on the approved fire strategy and Cause & Effect Matrix.

What should be checked during commissioning?

Checks may include detector and manual call point activation, panel zone/device indication, notification, Cause & Effect functions, interfaces, event recording, reset and restoration.
