Direct Answer

The listed addressable devices total 235 against a stated loop capacity of 250, giving 94.0% utilization and 15 spare addresses, assuming each device uses one address and the selected OEM permits 250 addresses on the loop.

At a Glance

Loop capacity	250 devices
Connected devices	235
Utilization	94.0%
Spare capacity	15 devices

Technical Content

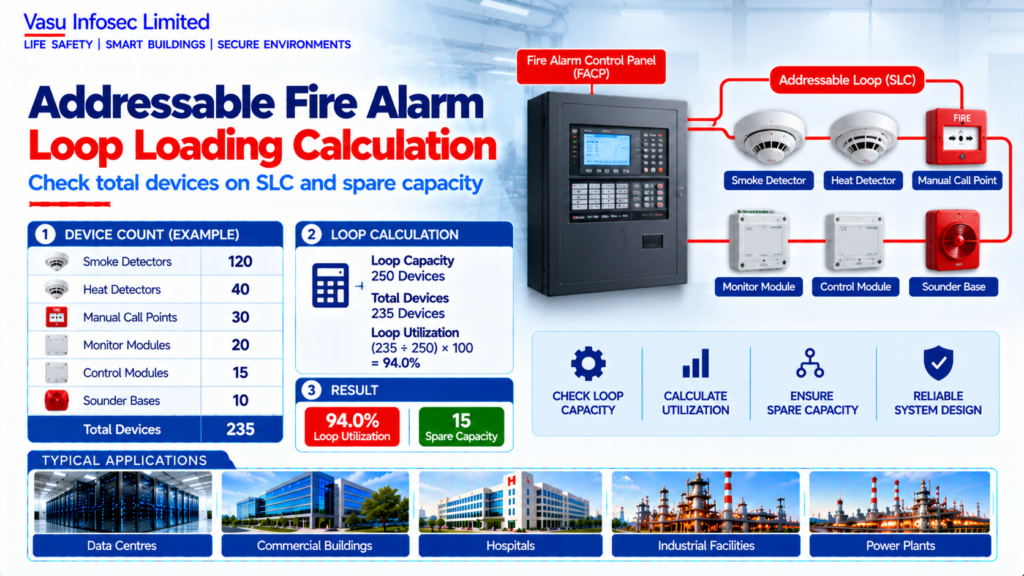

Addressable Fire Alarm Loop Loading Calculation

1. Purpose

To determine whether the total number of addressable devices connected to a Signaling Line Circuit (SLC) is within the allowable capacity of the Fire Alarm Control Panel and to assist in proper loop loading during system design.

2. Engineering Objective

To calculate addressable loop utilization, verify spare capacity, and support reliable system operation and future expansion.

3. Applicable Standards

4. Design Inputs

5. Assumptions

Each listed device occupies one address on the SLC. OEM permits 250 addresses on one loop.

6. Formula(s)

Total Devices = Sum of all addressable devices Loop Utilization (%) = (Total Devices ÷ Loop Capacity) × 100

7. Variables Explained

Lc = Loop Capacity; TD = Total Devices; LU = Loop Utilization.

8. Step-by-Step Calculation

Total Devices = 235 Loop Utilization = (235/250) ×100 = 94.0% Spare Capacity = 15 devices.

9. Worked Engineering Example

One SLC supports 235 devices against a maximum capacity of 250 devices. Utilization is 94.0%, leaving 15 spare addresses for future expansion.

10. Engineering Output

Loop Capacity: 250 Devices Connected Devices: 235 Utilization: 94.0% Spare Capacity: 15 Devices

11. Design Considerations

Reserve 15–20% spare capacity where project requirements permit. Consider cable length, voltage drop and OEM limits.

12. Common Design Mistakes

Exceeding OEM loop capacity, ignoring future expansion, mixing incompatible devices, overlooking cable topology.

13. Practical Site Notes

Maintain updated loop schedule and address list. Verify device count before commissioning.

14. Limitations

Final loop design shall comply with OEM software, panel limitations and approved shop drawings.

15. Related Engineering Systems

FACP, Network Panels, Power Supplies, BMS, Graphics Workstation.

16. Cross References

Related FAQ: Addressable Fire Alarm Systems Related White Paper: VEP-001 Related Diagram: ED-004

17. SEO Meta Title

Addressable Fire Alarm Loop Loading Calculation | EC-004

18. SEO Meta Description

Calculate addressable fire alarm loop loading and spare capacity with a worked engineering example.

19. URL Slug

ec-004-addressable-loop-loading-calculation

20. Keywords (15)

Addressable Loop, SLC Loading, Fire Alarm Panel, NFPA72, IS2189, Loop Capacity, Device Count, Fire Alarm Engineering, FACP, Modules, Smoke Detector, Engineering Calculation, EPC, Consultant, Fire Protection

21. AI Search Summary

Addressable loop loading is calculated by comparing the total connected devices with the panel’s maximum SLC capacity. In this example, 235 devices on a 250-device loop result in 94.0% utilization, leaving 15 spare addresses.

Source Tables

Standard		Description
NFPA 72		National Fire Alarm and Signaling Code
IS 2189		Fire Detection & Alarm Systems
NBC India Part 4		Fire & Life Safety
IEC 60364		Electrical Installations
OEM Manual		Panel loop capacity
Parameter	Symbol	Value	Unit
Loop Capacity	Lc	250	Devices
Smoke Detectors	SD	120	Nos.
Heat Detectors	HD	40	Nos.
Manual Call Points	MCP	30	Nos.
Monitor Modules	MM	20	Nos.
Control Modules	CM	15	Nos.
Sounder Bases	SB	10	Nos.

Frequently Asked Questions

How is loop utilization calculated?

Divide total connected addressable devices by the loop capacity and multiply by 100.

Does 94% utilization confirm all design constraints?

No. Cable length, voltage drop, device compatibility, OEM software limits and approved shop drawings must also be checked.
