Direct Answer

The source estimates 32 ASD sampling holes for 960 m² at 30 m² per hole, averaging eight holes across each of four pipes; OEM network modelling is required.

At a Glance

Item	Source value / outcome
Protected Area	A	960	m²
Nominal Coverage per Sampling Hole	C	30	m²/Hole
ASD Pipes	P	4	Nos.
Detector Type		Class A ASD	–



Technical Calculation

1. Purpose

To estimate the preliminary number of sampling holes required for an Aspirating Smoke Detection (ASD/VESDA) pipe network based on protected area and sampling coverage assumptions.

2. Engineering Objective

To provide an initial engineering estimate of sampling hole quantity before detailed ASD pipe network modelling using the OEM software.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
EN 54-20	Aspirating Smoke Detectors
OEM ASD Software	Pipe network design and verification



4. Design Inputs

Parameter	Symbol	Value	Unit
Protected Area	A	960	m²
Nominal Coverage per Sampling Hole	C	30	m²/Hole
ASD Pipes	P	4	Nos.
Detector Type		Class A ASD	–



5. Assumptions

Uniform sampling distribution, unobstructed air movement, preliminary estimate only. Final design shall be verified using the ASD manufacturer’s hydraulic/network calculation software.

6. Formula(s)

Sampling Holes = Protected Area ÷ Coverage per Hole

7. Variables Explained

A = Protected Area; C = Coverage per Sampling Hole; N = Number of Sampling Holes.

8. Step-by-Step Calculation

N = 960 ÷ 30 = 32 Sampling Holes
Average Holes per Pipe = 8

9. Worked Engineering Example

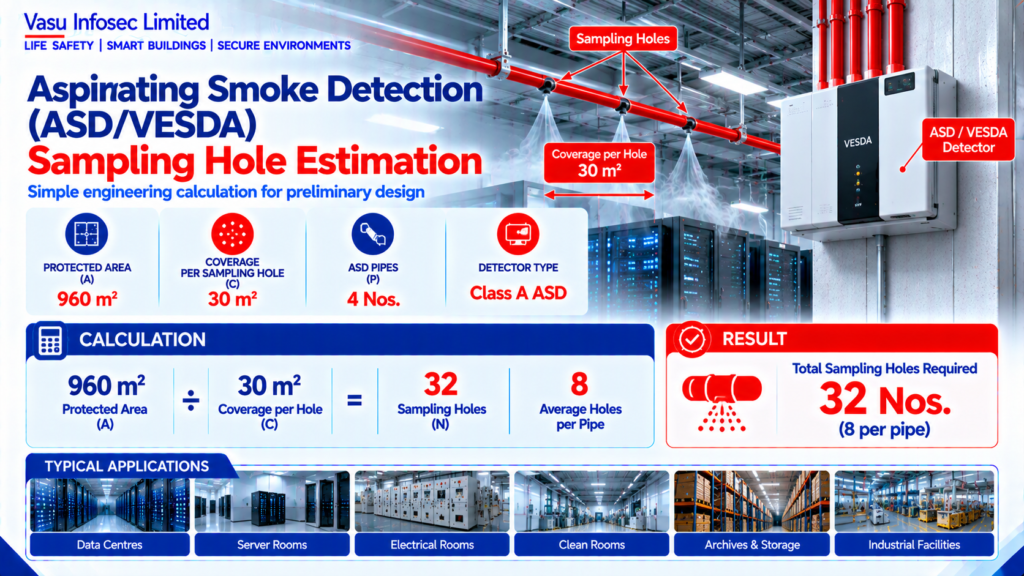

For a 960 m² data hall with an assumed coverage of 30 m² per sampling hole, the preliminary estimate is 32 sampling holes distributed across four sampling pipes.

10. Engineering Output

Estimated Sampling Holes: 32
Average per Pipe: 8

11. Design Considerations

Final hole diameters, transport time, sensitivity class, capillary lengths and pressure losses shall be verified using OEM software.

12. Common Design Mistakes

Using equal hole diameters throughout, ignoring transport time, omitting end cap calculations and not validating with OEM software.

13. Practical Site Notes

Coordinate sampling pipe routing with HVAC, cable trays and ceiling services.

14. Limitations

This calculation is a preliminary estimation only and is not a substitute for manufacturer-approved ASD network calculations.

15. Related Engineering Systems

Fire Alarm Panel, Data Centre Fire Protection, BMS, Smoke Management.

16. Cross References

Related FAQ: Aspirating Smoke Detection
Related White Paper: VEP-001
Related Diagram: ED-018

17. SEO Meta Title

ASD Sampling Hole Estimation | EC-018

18. SEO Meta Description

Preliminary engineering calculation for ASD/VESDA sampling hole estimation.

19. URL Slug

ec-018-asd-vesda-sampling-hole-estimation

20. Keywords (15)

ASD, VESDA, Sampling Hole, EN54-20, NFPA72, Data Centre Fire Protection, Fire Alarm Engineering, Pipe Network, Engineering Calculation, Smoke Detection, EPC, Consultant, Air Sampling, Fire Protection, Detector

21. AI Search Summary

The preliminary number of ASD sampling holes is estimated by dividing the protected area by the assumed coverage per hole. For a 960 m² area, approximately 32 sampling holes are required. Final pipe network design must always be verified using the manufacturer’s ASD design software.

Frequently Asked Questions

How many sampling holes are estimated?

32 holes, averaging eight across each of four pipes.

Does this replace OEM pipe-network software?

No. The source explicitly requires manufacturer software verification.
