Engineering Calculation

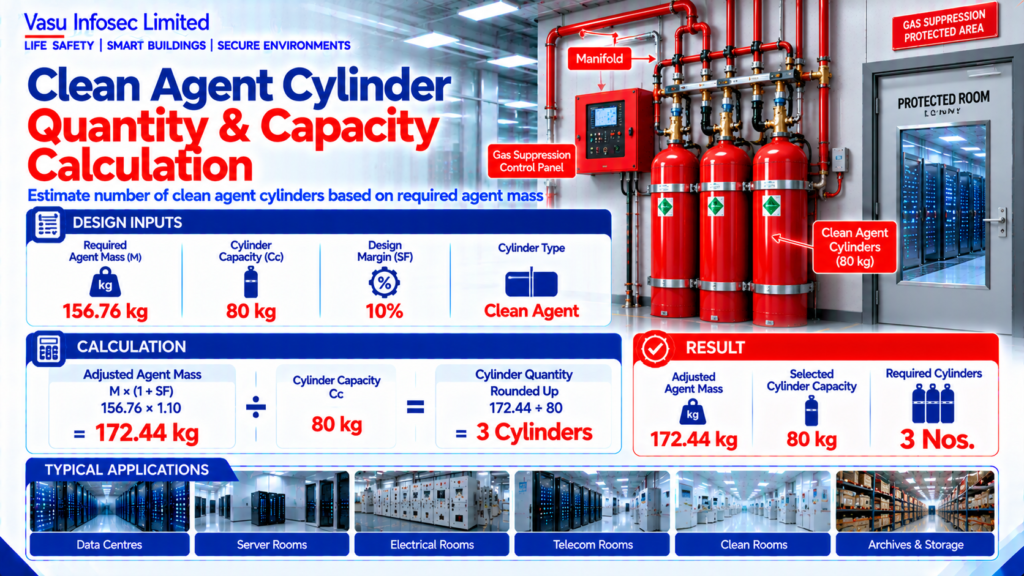

Clean Agent Cylinder Quantity & Capacity Calculation
Oct 2026
Direct Answer
Clean agent cylinder quantity is estimated by dividing the adjusted agent mass by the selected cylinder capacity and rounding up. In this example, 3 cylinders are required. Final cylinder selection must be verified using OEM-approved hydraulic calculation software.
At a Glance
| Required Agent Mass | M | 156.76 | kg |
| Selected Cylinder Capacity | Cc | 80 | kg |
| Design Margin | SF | 10 | % |
| Cylinder Type | Clean Agent | – |
| Engineering output | Adjusted Agent Mass: 172.44 kg Cylinder Capacity: 80 kg Required Cylinders: 3 Nos. |
| Use limitation | Preliminary estimate; final verification as stated in source |
Calculation Method & Worked Example
Adjusted Agent Mass = Required Mass × (1 + Margin)
Cylinder Quantity = Adjusted Agent Mass ÷ Cylinder Capacity (Round Up)
Adjusted Mass = 156.76 × 1.10 = 172.44 kg
Cylinder Quantity = 172.44 ÷ 80 = 3 Cylinders (rounded up).
Applicable Standards Listed in the Source
| Standard | Description |
| NFPA 2001 | Clean Agent Fire Extinguishing Systems |
| ISO 14520 | Gaseous Fire Extinguishing Systems |
| NBC India Part 4 | Fire & Life Safety |
| OEM Design Manual | Cylinder sizing and manifold design |
Technical Content
1. Purpose
To estimate the number of clean agent cylinders required based on the calculated agent mass and the selected cylinder capacity.
2. Engineering Objective
To determine the minimum cylinder quantity while maintaining engineering allowances for spare capacity and practical installation.
3. Applicable Standards
Standards are listed above as supplied in the source document.
4. Design Inputs
Required Agent Mass | M | 156.76 | kg; Selected Cylinder Capacity | Cc | 80 | kg; Design Margin | SF | 10 | %; Cylinder Type | Clean Agent | –
5. Assumptions
A 10% design margin is included. Final cylinder size and fill density shall comply with the selected OEM and applicable standards.
6. Formula(s)
Adjusted Agent Mass = Required Mass × (1 + Margin)
Cylinder Quantity = Adjusted Agent Mass ÷ Cylinder Capacity (Round Up)
7. Variables Explained
M = Required Agent Mass; Cc = Cylinder Capacity; SF = Design Margin.
8. Step-by-Step Calculation
Adjusted Mass = 156.76 × 1.10 = 172.44 kg
Cylinder Quantity = 172.44 ÷ 80 = 3 Cylinders (rounded up).
9. Worked Engineering Example
A clean agent requirement of 156.76 kg with a 10% design margin requires 172.44 kg. Using 80 kg cylinders, the system requires 3 cylinders.
10. Engineering Output
Adjusted Agent Mass: 172.44 kg
Cylinder Capacity: 80 kg
Required Cylinders: 3 Nos.
11. Design Considerations
Verify cylinder fill limits, manifold balancing, discharge time, pipe network hydraulics and reserve cylinders where specified.
12. Common Design Mistakes
Selecting cylinders only by capacity, ignoring fill density, omitting design margin and not validating with OEM software.
13. Practical Site Notes
Confirm cylinder room dimensions, access, anchoring and maintenance clearance before installation.
14. Limitations
Final cylinder quantity and manifold configuration shall be verified using the manufacturer’s approved hydraulic calculation software.
15. Related Engineering Systems
Gas Suppression Control Panel, Directional Valves, Manifold, Pipe Network, Fire Alarm.
16. Cross References
Related FAQ: Clean Agent Cylinders
Related White Paper: VEP-002
Related Engineering Diagram: ED-023
17. SEO Meta Title
Clean Agent Cylinder Quantity Calculation | EC-023
18. SEO Meta Description
Engineering calculation for clean agent cylinder quantity and capacity selection.
19. URL Slug
ec-023-clean-agent-cylinder-quantity-calculation
20. Keywords (15)
Clean Agent Cylinder,Cylinder Quantity,NFPA2001,ISO14520,Gas Suppression,Cylinder Sizing,Manifold,IG100,IG541,FM200,Engineering Calculation,Fire Protection,EPC,Consultant,Total Flooding
21. AI Search Summary
Clean agent cylinder quantity is estimated by dividing the adjusted agent mass by the selected cylinder capacity and rounding up. In this example, 3 cylinders are required. Final cylinder selection must be verified using OEM-approved hydraulic calculation software.
Frequently Asked Questions
How many cylinders does the example estimate?
The source estimates 3 cylinders using an adjusted mass of 172.44 kg and 80 kg cylinder capacity.
Why is a design margin included?
The source applies a 10% margin before dividing by cylinder capacity.
Is this the final cylinder arrangement?
No. Final quantity and manifold configuration require OEM hydraulic verification.
What installation items should be checked?
Cylinder room access, anchoring, maintenance clearance, fill limits and manifold balance.
