Direct Answer

The preliminary clean agent cylinder storage room area is calculated from the cylinder footprint, maintenance allowance and access space. In this example, the estimated room area is 5.78 m². Final layout must comply with OEM installation requirements and project specifications.

At a Glance

Item	Source value / outcome
Resource ID	EC-033
Number of Cylinders	6 Nos.
Footprint per Cylinder	0.45 m²
Maintenance Allowance	40 %
Access Corridor	2.00 m²
Engineering output	Estimated Cylinder Room Area: 5.78 m²

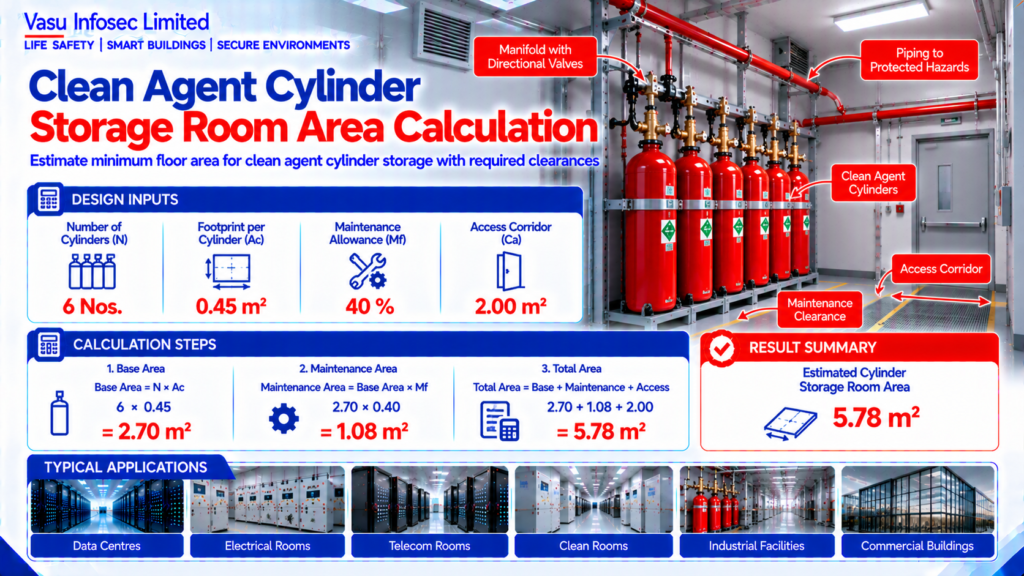

Calculation Method & Worked Example

Base Area = N × Ac

Maintenance Area = Base Area × Mf

Total Area = Base Area + Maintenance Area + Access Corridor

Base Area = 6 × 0.45 = 2.70 m²

Maintenance Area = 2.70 × 0.40 = 1.08 m²

Total Area = 2.70 + 1.08 + 2.00 = 5.78 m²

A bank of 6 clean agent cylinders requires a base footprint of 2.70 m². Including maintenance clearance and access, the estimated storage room area is 5.78 m².

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Installation Manual	Cylinder installation clearances



Technical Content

1. Purpose

To estimate the minimum floor area required for a clean agent cylinder storage room while providing installation, operation and maintenance clearances.

2. Engineering Objective

To determine a preliminary cylinder storage room area for engineering planning before detailed layout approval.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Parameter	Symbol	Value	Unit
Number of Cylinders	N	6	Nos.
Footprint per Cylinder	Ac	0.45	m²
Maintenance Allowance	Mf	40	%
Access Corridor	Ca	2.00	m²

5. Assumptions

All cylinders are installed in a single row. A 40% maintenance allowance and a dedicated access corridor are included.

6. Formula(s)

Base Area = N × Ac

Maintenance Area = Base Area × Mf

Total Area = Base Area + Maintenance Area + Access Corridor

7. Variables Explained

N = Number of cylinders; Ac = Footprint per cylinder; Mf = Maintenance factor.

8. Step-by-Step Calculation

Base Area = 6 × 0.45 = 2.70 m²

Maintenance Area = 2.70 × 0.40 = 1.08 m²

Total Area = 2.70 + 1.08 + 2.00 = 5.78 m²

9. Worked Engineering Example

A bank of 6 clean agent cylinders requires a base footprint of 2.70 m². Including maintenance clearance and access, the estimated storage room area is 5.78 m².

10. Engineering Output

Estimated Cylinder Room Area: 5.78 m²

11. Design Considerations

Provide structural support, ventilation where required, clear escape access, seismic restraints where applicable and OEM maintenance clearances.

12. Common Design Mistakes

Insufficient maintenance clearance, blocked valve access, ignoring future expansion and inadequate door width.

13. Practical Site Notes

Confirm cylinder dimensions from approved OEM drawings before finalizing room layout.

14. Limitations

Final room layout shall follow approved shop drawings, OEM installation manuals and project specifications.

15. Related Engineering Systems

Cylinder Bank, Manifold, Directional Valves, Fire Alarm Control Panel.

16. Cross References

Related FAQ: Cylinder Storage Room

Related White Paper: VEP-002

Related Engineering Diagram: ED-033
