Direct Answer

Clean agent manifold size is estimated from the total discharge mass flow, agent density and design velocity. In this example, the calculated preliminary manifold internal diameter is 130.3 mm. Final manifold sizing must be verified using the OEM’s approved hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-034
Total Mass Flow Rate	18 kg/s
Agent Density	45 kg/m³
Design Velocity	30 m/s
Connected Cylinders	6 Nos.
Engineering output	Calculated Manifold Internal Diameter: 130.3 mm; Select the next suitable nominal pipe size after OEM verification.

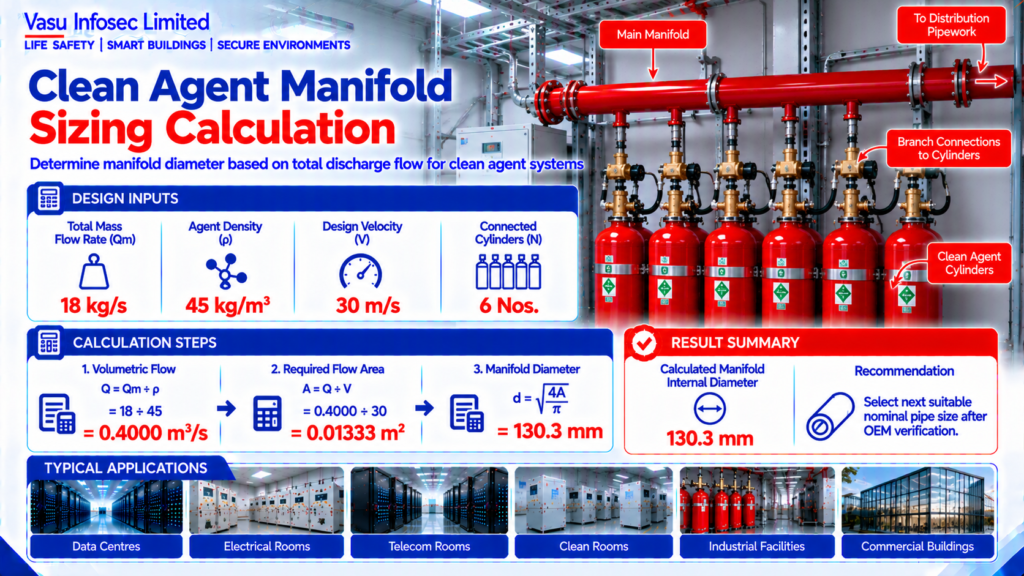

Calculation Method & Worked Example

Volumetric Flow = Mass Flow ÷ Density

Area = Volumetric Flow ÷ Velocity

Diameter = √(4A/π)

Volumetric Flow = 0.4000 m³/s

Required Area = 0.01333 m²

Calculated Internal Diameter = 130.3 mm

For a total mass flow of 18 kg/s, agent density of 45 kg/m³ and design velocity of 30 m/s, the calculated preliminary manifold internal diameter is 130.3 mm.

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Manifold sizing and hydraulic balancing

Technical Content

1. Purpose

To estimate the preliminary manifold size required to convey the combined discharge flow from multiple clean agent cylinders to the distribution pipework.

2. Engineering Objective

To determine an initial manifold diameter based on total discharge flow velocity before detailed OEM hydraulic verification.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Parameter	Symbol	Value	Unit
Total Mass Flow Rate	Qm	18	kg/s
Agent Density	ρ	45	kg/m³
Design Velocity	V	30	m/s
Connected Cylinders	N	6	Nos.

5. Assumptions

Steady average flow and constant density are assumed. Compressibility effects are ignored. Final manifold sizing shall be verified using OEM hydraulic software.

6. Formula(s)

Volumetric Flow = Mass Flow ÷ Density

Area = Volumetric Flow ÷ Velocity

Diameter = √(4A/π)

7. Variables Explained

Qm = Mass flow; ρ = Agent density; V = Design velocity; A = Flow area; d = Internal diameter.

8. Step-by-Step Calculation

Volumetric Flow = 0.4000 m³/s

Required Area = 0.01333 m²

Calculated Internal Diameter = 130.3 mm

9. Worked Engineering Example

For a total mass flow of 18 kg/s, agent density of 45 kg/m³ and design velocity of 30 m/s, the calculated preliminary manifold internal diameter is 130.3 mm.

10. Engineering Output

Calculated Manifold Internal Diameter: 130.3 mm

Select the next suitable nominal pipe size after OEM verification.

11. Design Considerations

Consider manifold pressure drop, branch balancing, cylinder arrangement, future expansion and support requirements.

12. Common Design Mistakes

Undersized manifolds, excessive velocity, ignoring branch balancing and using preliminary calculations for final fabrication.

13. Practical Site Notes

Provide adequate supports, access for maintenance and alignment with cylinder valves.

14. Limitations

This calculation is for preliminary engineering only. Final manifold sizing shall be confirmed using the manufacturer’s approved hydraulic calculation software.

15. Related Engineering Systems

Cylinder Bank, Directional Valve, Pipe Network, Nozzles.

16. Cross References

Related FAQ: Clean Agent Manifold

Related White Paper: VEP-002

Related Engineering Diagram: ED-034
