Direct Answer

Clean agent nozzle flow rate is estimated by dividing the required agent mass by the discharge time and distributing the flow among the selected nozzles. In this example, each nozzle delivers approximately 0.72 kg/s. Final nozzle sizing must be verified using OEM hydraulic calculation software.

At a Glance

Total Agent Mass	M | 172.44 | kg
Required Discharge Time	T | 60 | s
Protected Area	A | 384 | m²
Selected Nozzles	N | 4 | Nos.

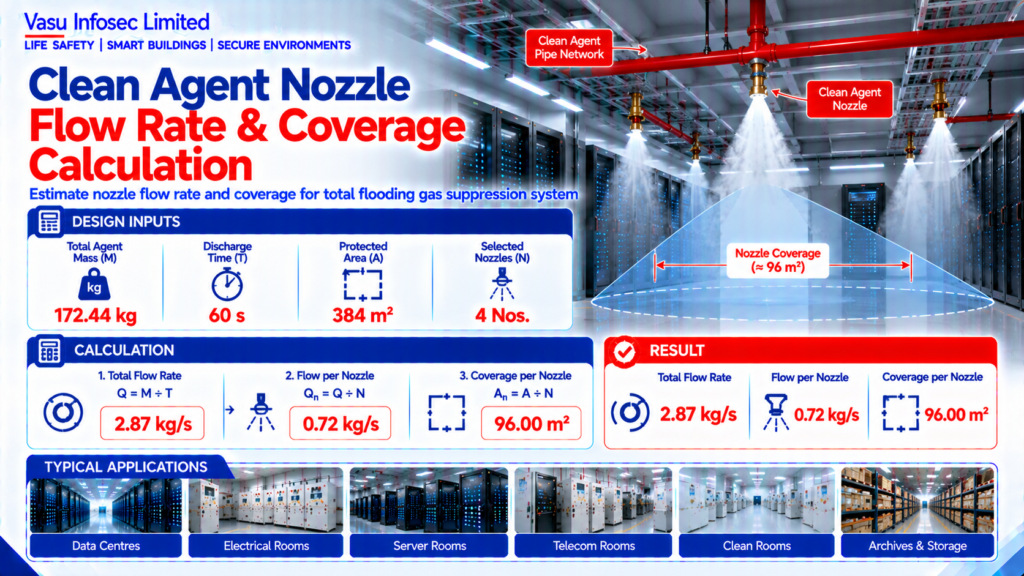

Engineering output	Total Flow Rate: 2.87 kg/s Flow per Nozzle: 0.72 kg/s Estimated Coverage per Nozzle: 96.00 m²
Use limitation	Preliminary estimate; final verification as stated in source

Calculation Method & Worked Example

Flow Rate = Agent Mass ÷ Discharge Time

Flow per Nozzle = Total Flow ÷ Number of Nozzles

Coverage per Nozzle = Protected Area ÷ Number of Nozzles

Total Flow Rate = 172.44 ÷ 60 = 2.87 kg/s

Flow per Nozzle = 2.87 ÷ 4 = 0.72 kg/s

Coverage per Nozzle = 384 ÷ 4 = 96.00 m²

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Nozzle selection and discharge verification

Technical Content

1. Purpose

To estimate the required clean agent nozzle flow rate and preliminary nozzle coverage for a total flooding gaseous fire suppression system before detailed OEM hydraulic analysis.

2. Engineering Objective

To determine an initial nozzle arrangement that supports uniform agent distribution throughout the protected enclosure.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Total Agent Mass | M | 172.44 | kg; Required Discharge Time | T | 60 | s; Protected Area | A | 384 | m²; Selected Nozzles | N | 4 | Nos.

5. Assumptions

Uniform discharge from all nozzles is assumed. Final nozzle type, orifice size and pressure shall be verified using OEM hydraulic software.

6. Formula(s)

Flow Rate = Agent Mass ÷ Discharge Time

Flow per Nozzle = Total Flow ÷ Number of Nozzles

Coverage per Nozzle = Protected Area ÷ Number of Nozzles

7. Variables Explained

M = Agent Mass; T = Discharge Time; N = Number of Nozzles; A = Protected Area.

8. Step-by-Step Calculation

Total Flow Rate = 172.44 ÷ 60 = 2.87 kg/s

Flow per Nozzle = 2.87 ÷ 4 = 0.72 kg/s

Coverage per Nozzle = 384 ÷ 4 = 96.00 m²

9. Worked Engineering Example

A protected area of 384 m² requires 172.44 kg of clean agent discharged in 60 seconds. Using 4 nozzles, each nozzle delivers approximately 0.72 kg/s and covers about 96.00 m² before hydraulic optimisation.

10. Engineering Output

Total Flow Rate: 2.87 kg/s

Flow per Nozzle: 0.72 kg/s

Estimated Coverage per Nozzle: 96.00 m²

11. Design Considerations

Consider nozzle elevation, throw pattern, obstructions, pressure loss, enclosure geometry and discharge time. Verify all parameters with OEM software.

12. Common Design Mistakes

Using equal nozzle spacing without hydraulic balancing, ignoring obstructions, selecting incorrect nozzle type and bypassing OEM verification.

13. Practical Site Notes

Coordinate nozzle locations with lighting, HVAC diffusers and cable trays to avoid discharge interference.

14. Limitations

This calculation is preliminary only. Final nozzle selection and coverage shall be based on the manufacturer’s listed hydraulic calculation program.

15. Related Engineering Systems

Cylinder Manifold, Pipe Network, Directional Valve, Fire Detection & Alarm.

16. Cross References

Related FAQ: Clean Agent Nozzles

Related White Paper: VEP-002

Related Engineering Diagram: ED-025

17. SEO Meta Title

Clean Agent Nozzle Flow Rate Calculation | EC-025

18. SEO Meta Description

Engineering calculation for clean agent nozzle flow rate and preliminary coverage estimation.

19. URL Slug

ec-025-clean-agent-nozzle-flow-rate-calculation

20. Keywords (15)

Clean Agent Nozzle, Nozzle Flow, Gas Suppression, NFPA2001, ISO14520, Nozzle Coverage, Hydraulic Calculation, IG100, IG541, FM200, Engineering Calculation, Fire Protection, EPC, Consultant, Total Flooding

21. AI Search Summary

Clean agent nozzle flow rate is estimated by dividing the required agent mass by the discharge time and distributing the flow among the selected nozzles. In this example, each nozzle delivers approximately 0.72 kg/s. Final nozzle sizing must be verified using OEM hydraulic calculation software.

Frequently Asked Questions

How is flow per nozzle estimated?

The source divides total estimated flow by the number of selected nozzles.

What is the example flow per nozzle?

The source estimates approximately 0.72 kg/s per nozzle.

Does equal area establish actual nozzle coverage?

No. Final nozzle type, orifice size, pressure and coverage require OEM verification.

What site coordination is needed?

Coordinate nozzle locations with lighting, HVAC diffusers and cable trays.
