Direct Answer

A preliminary clean agent pipe diameter can be estimated from mass flow, density and allowable velocity. In this example the calculated internal diameter is 116.5 mm, but final pipe sizing must always be verified using the OEM’s approved hydraulic calculation software.

At a Glance

Agent Flow Rate	Q | 12 | kg/s
Assumed Agent Density	ρ | 45 | kg/m³
Allowable Velocity	V | 25 | m/s
Pipe Material	Schedule 40 Steel | –
Engineering output	Calculated Internal Diameter: 116.5 mm Final Pipe Size: Subject to OEM hydraulic software.
Use limitation	Preliminary estimate; final verification as stated in source

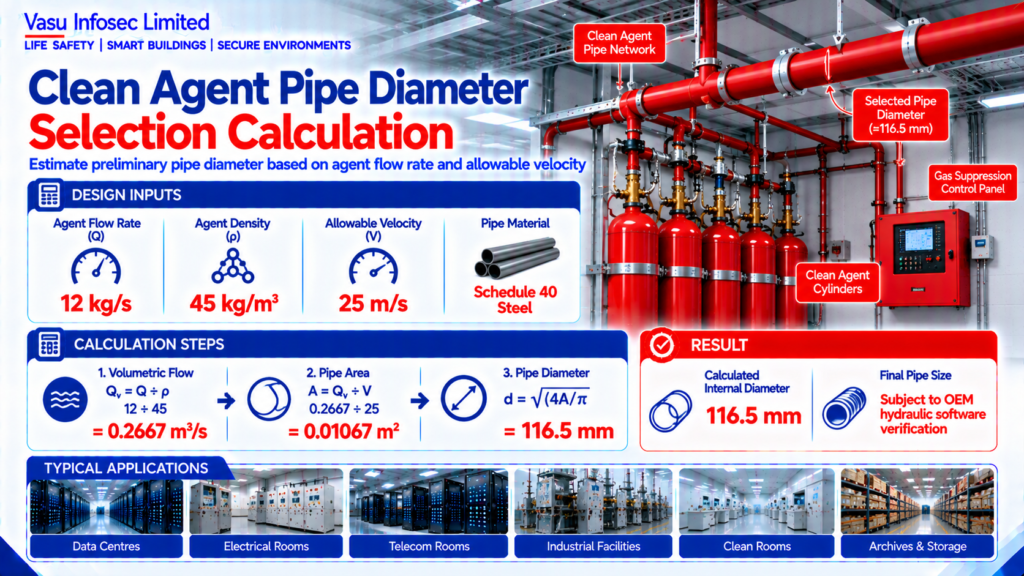

Calculation Method & Worked Example

Volumetric Flow = Mass Flow ÷ Density

Pipe Area = Volumetric Flow ÷ Velocity

Diameter = √(4A/π)

Volumetric Flow = 0.2667 m³/s

Required Area = 0.01067 m²

Calculated Diameter = 116.5 mm

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Standard on Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire-Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Final pipe sizing and nozzle verification

Technical Content

1. Purpose

To estimate a preliminary pipe diameter for a clean agent gaseous fire suppression system based on agent flow rate and allowable flow velocity before OEM hydraulic verification.

2. Engineering Objective

To determine an initial pipe size for conceptual design, BOQ preparation and routing, recognizing that final pipe sizing must be validated using the manufacturer’s hydraulic calculation software.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Agent Flow Rate | Q | 12 | kg/s; Assumed Agent Density | ρ | 45 | kg/m³; Allowable Velocity | V | 25 | m/s; Pipe Material | Schedule 40 Steel | –

5. Assumptions

Constant agent density is assumed for preliminary estimation. Compressible flow effects are ignored. Final design requires OEM hydraulic software.

6. Formula(s)

Volumetric Flow = Mass Flow ÷ Density

Pipe Area = Volumetric Flow ÷ Velocity

Diameter = √(4A/π)

7. Variables Explained

Q = Mass flow rate; ρ = Agent density; V = Flow velocity; A = Pipe area; d = Internal diameter.

8. Step-by-Step Calculation

Volumetric Flow = 0.2667 m³/s

Required Area = 0.01067 m²

Calculated Diameter = 116.5 mm

9. Worked Engineering Example

For a mass flow of 12 kg/s, density of 45 kg/m³ and velocity of 25 m/s, the estimated internal pipe diameter is 116.5 mm prior to hydraulic balancing.

10. Engineering Output

Calculated Internal Diameter: 116.5 mm

Final Pipe Size: Subject to OEM hydraulic software.

11. Design Considerations

Check discharge time, pressure loss, equivalent lengths, fittings, manifold arrangement, nozzle pressure and balanced flow.

12. Common Design Mistakes

Selecting pipe only by flow velocity, ignoring pressure loss, omitting fittings and bypassing OEM hydraulic calculations.

13. Practical Site Notes

Coordinate pipe routing with structural and MEP services. Minimize unnecessary elbows and offsets.

14. Limitations

This calculation is for preliminary engineering only and shall not be used for final installation drawings without OEM hydraulic verification.

15. Related Engineering Systems

Cylinder Manifold, Directional Valves, Nozzles, Fire Alarm Control Panel.

16. Cross References

Related FAQ: Clean Agent Pipework

Related White Paper: VEP-002

Related Engineering Diagram: ED-024
