Direct Answer

The equivalent hydraulic length of a clean agent pipe network is obtained by adding straight pipe, fitting equivalent lengths and vertical sections. In this example, the equivalent length is 76 m. Final hydraulic verification must be completed using the OEM’s approved calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-031
Straight Pipe Length	52 m
Equivalent Elbows & Tees	18 m
Vertical Rise	6 m
Total Fittings	14 Nos.
Engineering output	Equivalent Hydraulic Length: 76 m

Calculation Method & Worked Example

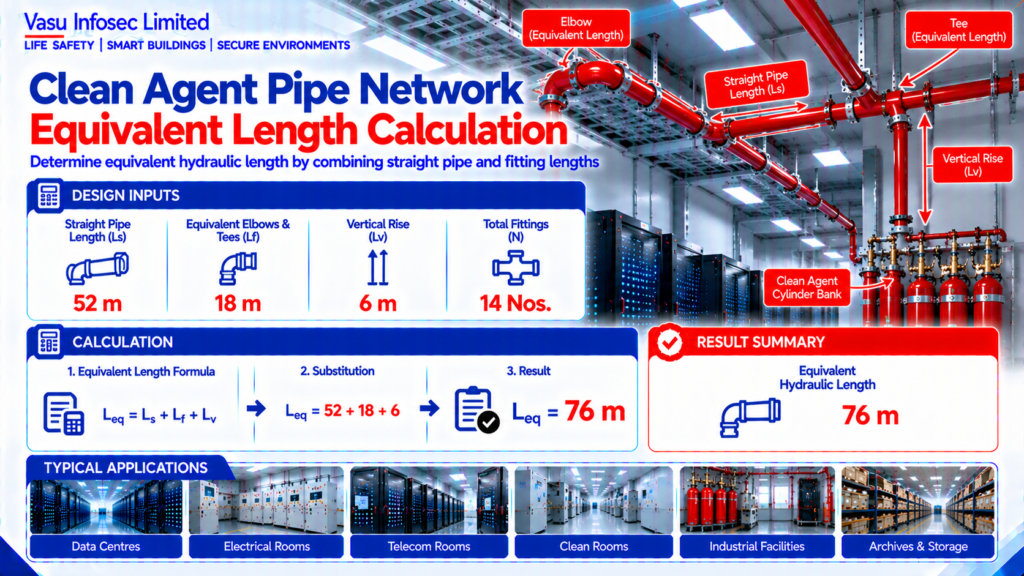

Equivalent Length = Straight Length + Fittings Equivalent Length + Vertical Length

Leq = 52 + 18 + 6 = 76 m

A pipe network with 52 m of straight pipe, 18 m fitting equivalent length and 6 m vertical rise has an equivalent hydraulic length of 76 m.

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Final hydraulic network calculations



Technical Content

1. Purpose

To determine the equivalent hydraulic length of a clean agent pipe network by combining straight pipe lengths and fitting equivalent lengths for preliminary design.

2. Engineering Objective

To establish the equivalent pipe length used for conceptual hydraulic assessment prior to OEM software verification.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Parameter	Symbol	Value	Unit
Straight Pipe Length	Ls	52	m
Equivalent Elbows & Tees	Lf	18	m
Vertical Rise	Lv	6	m
Total Fittings	N	14	Nos.

5. Assumptions

Equivalent fitting lengths are based on preliminary engineering estimates. Final values shall follow the selected manufacturer’s hydraulic software.

6. Formula(s)

Equivalent Length = Straight Length + Fittings Equivalent Length + Vertical Length

7. Variables Explained

Ls = Straight pipe length; Lf = Equivalent fitting length; Lv = Vertical length; Leq = Equivalent hydraulic length.

8. Step-by-Step Calculation

Leq = 52 + 18 + 6 = 76 m

9. Worked Engineering Example

A pipe network with 52 m of straight pipe, 18 m fitting equivalent length and 6 m vertical rise has an equivalent hydraulic length of 76 m.

10. Engineering Output

Equivalent Hydraulic Length: 76 m

11. Design Considerations

Include manifolds, valves, reducers and all equivalent fitting lengths. Verify balanced flow using OEM software.

12. Common Design Mistakes

Ignoring fitting losses, excluding vertical sections, underestimating equivalent lengths and using preliminary values for final approval.

13. Practical Site Notes

Optimize routing to minimize bends and reduce pressure loss.

14. Limitations

This calculation is for preliminary engineering only. Final hydraulic acceptance shall be based on OEM-approved software.

15. Related Engineering Systems

Cylinder Manifold, Pipe Network, Nozzles, Pressure Relief Vent.

16. Cross References

Related FAQ: Gas Suppression Pipe Network

Related White Paper: VEP-002

Related Engineering Diagram: ED-031
