Direct Answer

Pipe support spacing is estimated from the pipe run length and the maximum allowable support interval. In this example, a 42 m clean agent pipe run requires 15 supports with an average spacing of 3.00 m. Final support design shall follow OEM and structural requirements.

At a Glance

Item	Source value / outcome
Resource ID	EC-037
Pipe Run Length	42 m
Maximum Support Spacing	3.0 m
Pipe Size	65 mm
Pipe Material	Schedule 40 Steel –
Engineering output	Required Supports: 15 Nos.; Average Support Spacing: 3.00 m

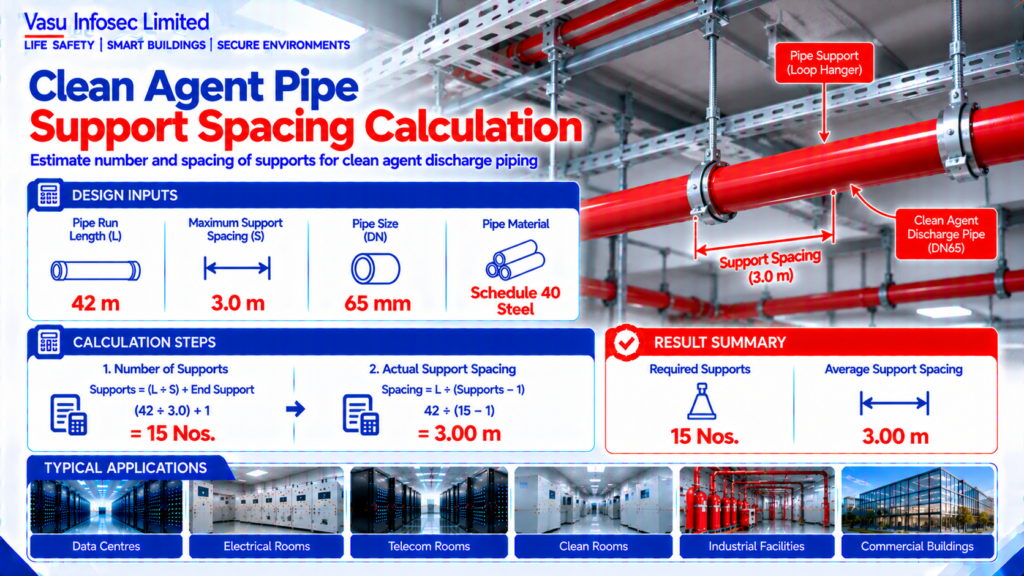

Calculation Method & Worked Example

Number of Supports = Ceiling(Pipe Length ÷ Maximum Spacing) + End Support

Actual Spacing = Pipe Length ÷ (Supports − 1)

Supports = (42 ÷ 3.0) + End Support = 15

Actual Support Spacing = 42 ÷ (15-1) = 3.00 m

A 42 m DN65 clean agent pipe run with a maximum support spacing of 3.0 m requires 15 supports, giving an average spacing of 3.00 m.

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ASME B31.1/B31.3	Piping guidance where applicable
NBC India Part 4	Fire & Life Safety
OEM Installation Manual	Pipe support requirements

Technical Content

1. Purpose

To estimate the maximum spacing of supports for clean agent discharge piping to maintain mechanical integrity during normal operation and agent discharge.

2. Engineering Objective

To determine the preliminary number and spacing of pipe supports for a clean agent pipe run prior to detailed structural coordination.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Parameter	Symbol	Value	Unit
Pipe Run Length	L	42	m
Maximum Support Spacing	S	3.0	m
Pipe Size	DN	65	mm
Pipe Material		Schedule 40 Steel	–

5. Assumptions

Uniform support spacing is assumed. Seismic restraints and special supports are not included. Final support details shall follow structural design and OEM requirements.

6. Formula(s)

Number of Supports = Ceiling(Pipe Length ÷ Maximum Spacing) + End Support

Actual Spacing = Pipe Length ÷ (Supports − 1)

7. Variables Explained

L = Pipe run length; S = Maximum allowable support spacing.

8. Step-by-Step Calculation

Supports = (42 ÷ 3.0) + End Support = 15

Actual Support Spacing = 42 ÷ (15-1) = 3.00 m

9. Worked Engineering Example

A 42 m DN65 clean agent pipe run with a maximum support spacing of 3.0 m requires 15 supports, giving an average spacing of 3.00 m.

10. Engineering Output

Required Supports: 15 Nos.

Average Support Spacing: 3.00 m

11. Design Considerations

Consider discharge forces, anchor points, seismic requirements, building movement, expansion joints and structural loading.

12. Common Design Mistakes

Exceeding support spacing, inadequate anchorage, ignoring discharge reaction forces and omitting supports near valves.

13. Practical Site Notes

Coordinate support locations with structural members and other building services before installation.

14. Limitations

This is a preliminary engineering calculation. Final support spacing and details shall comply with OEM documentation and structural engineering requirements.

15. Related Engineering Systems

Cylinder Manifold, Pipe Network, Nozzles, Structural Supports.

16. Cross References

Related FAQ: Clean Agent Pipe Supports

Related White Paper: VEP-002

Related Engineering Diagram: ED-037
