Clean agent quantity is estimated from the protected enclosure volume, design concentration and safety factor. In this worked example, the estimated clean agent requirement is 156.76 kg. Final cylinder sizing must always be verified using the OEM’s approved hydraulic calculation software.

At a Glance

Protected Volume	V | 518.4 | m³
Assumed Agent Density Factor	K | 0.72 | kg/m³ per %
Design Concentration	C | 40 | %
Safety Factor	SF | 1.05 | –
Engineering output	Estimated Clean Agent Mass: 156.76 kg
Use limitation	Preliminary estimate; final verification as stated in source

Calculation Method & Worked Example

Estimated Agent Mass = V × K × C × SF

Mass = 518.4 × 0.72 × 0.40 × 1.05 = 156.76 kg

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Design Manual	Agent calculation software

Technical Content

1. Purpose

To estimate the clean agent mass required for a total flooding gas suppression system based on the protected enclosure volume and an assumed design concentration.

2. Engineering Objective

To establish a preliminary clean agent quantity for engineering and budgeting purposes before final verification using the OEM hydraulic calculation software.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Protected Volume | V | 518.4 | m³; Assumed Agent Density Factor | K | 0.72 | kg/m³ per %; Design Concentration | C | 40 | %; Safety Factor | SF | 1.05 | –

5. Assumptions

The density factor and design concentration are assumed for illustration only. Actual values depend on the selected clean agent, design temperature, altitude and applicable standard.

6. Formula(s)

Estimated Agent Mass = V × K × C × SF





7. Variables Explained

V = Protected Volume; K = Agent density factor; C = Design concentration (decimal); SF = Safety factor.

8. Step-by-Step Calculation

Mass = 518.4 × 0.72 × 0.40 × 1.05 = 156.76 kg





9. Worked Engineering Example

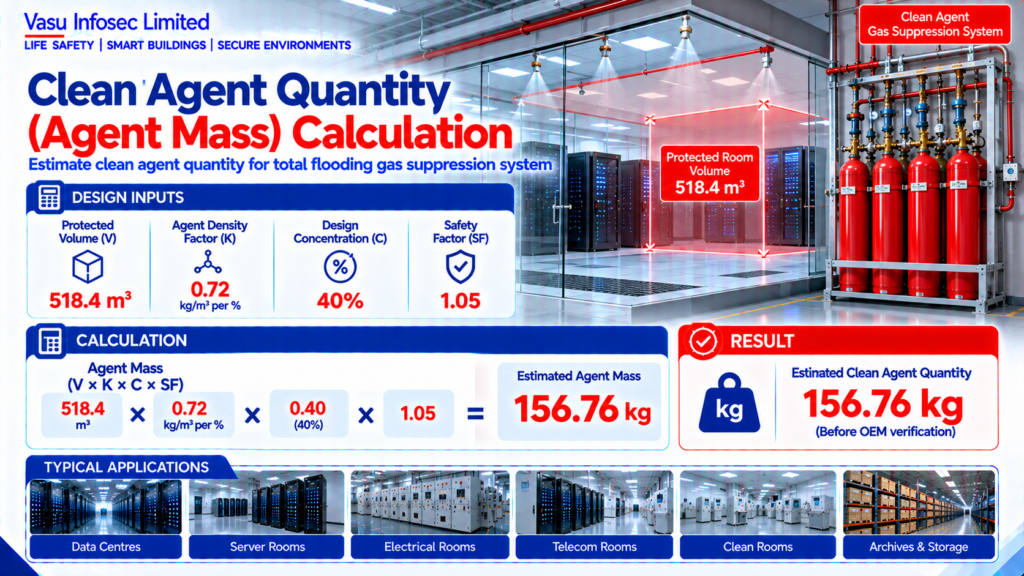

For a protected enclosure volume of 518.4 m³ using the assumed design parameters, the estimated clean agent quantity is 156.76 kg before OEM verification.

10. Engineering Output

Estimated Clean Agent Mass: 156.76 kg







11. Design Considerations

Account for enclosure integrity, hold time, altitude, minimum design concentration, nozzle selection and cylinder pressure. Final sizing shall be verified using the manufacturer’s listed calculation software.

12. Common Design Mistakes

Using incorrect room volume, ignoring temperature correction, omitting leakage considerations, or relying on manual calculations for final cylinder sizing.

13. Practical Site Notes

Verify as-built room dimensions and complete a door fan test before final acceptance.

14. Limitations

This is a preliminary engineering estimate only and shall not replace OEM hydraulic calculations required for project approval.
