Direct Answer

Reserve clean agent cylinder capacity is determined from the installed agent inventory and required reserve percentage. In this example, a full reserve requires four additional 80 kg cylinders. Final reserve provisions should follow the project specification and OEM guidance.

At a Glance

Item	Source value / outcome
Resource ID	EC-036
Installed Agent Mass	320 kg
Cylinder Capacity	80 kg
Reserve Requirement	100 %
Installed Cylinders	4 Nos.
Engineering output	Reserve Agent Mass: 320 kg; Reserve Cylinders Required: 4 Nos.

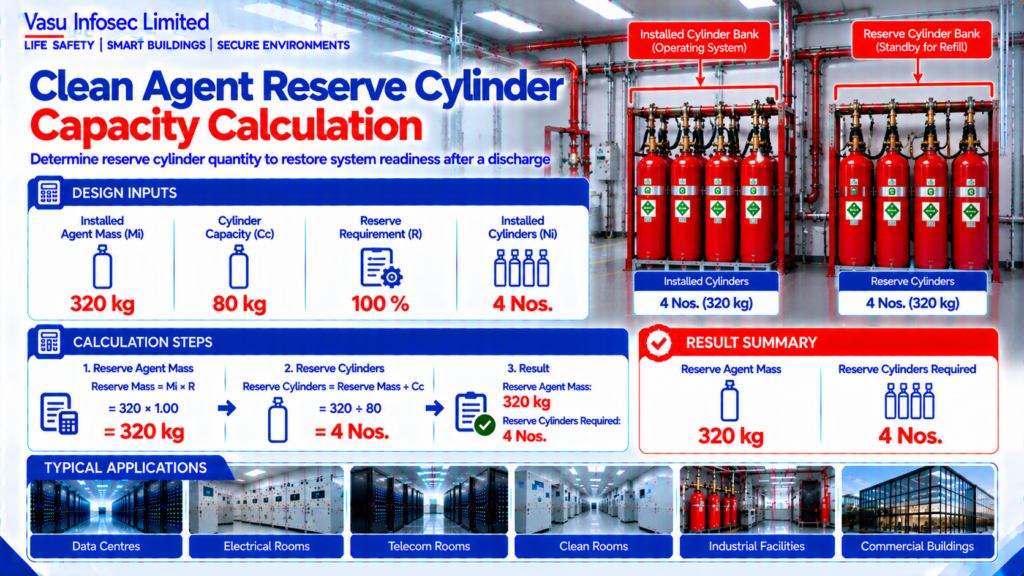

Calculation Method & Worked Example

Reserve Agent Mass = Installed Agent Mass × Reserve Requirement

Reserve Cylinders = Reserve Agent Mass ÷ Cylinder Capacity

Reserve Agent Mass = 320 kg

Reserve Cylinders = 320 ÷ 80 = 4

A system using four 80 kg cylinders (320 kg total) requires a reserve bank of 4 cylinders when a 100% reserve is specified.

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
Project Specification	Reserve cylinder requirements

Technical Content

1. Purpose

To estimate the reserve clean agent cylinder capacity required to restore system readiness after a discharge.

2. Engineering Objective

To determine the quantity of reserve cylinders based on the installed agent inventory and selected cylinder capacity for engineering planning.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Parameter	Symbol	Value	Unit
Installed Agent Mass	Mi	320	kg
Cylinder Capacity	Cc	80	kg
Reserve Requirement	R	100	%
Installed Cylinders	Ni	4	Nos.

5. Assumptions

The project requires a full reserve equal to the installed agent inventory. Actual reserve requirements shall follow the project specification and authority requirements.

6. Formula(s)

Reserve Agent Mass = Installed Agent Mass × Reserve Requirement

Reserve Cylinders = Reserve Agent Mass ÷ Cylinder Capacity

7. Variables Explained

Mi = Installed agent mass; Cc = Cylinder capacity; R = Reserve percentage.

8. Step-by-Step Calculation

Reserve Agent Mass = 320 kg

Reserve Cylinders = 320 ÷ 80 = 4

9. Worked Engineering Example

A system using four 80 kg cylinders (320 kg total) requires a reserve bank of 4 cylinders when a 100% reserve is specified.

10. Engineering Output

Reserve Agent Mass: 320 kg

Reserve Cylinders Required: 4 Nos.

11. Design Considerations

Confirm contractual reserve requirements, cylinder storage, refill logistics, manifold compatibility and changeover arrangements.

12. Common Design Mistakes

Providing insufficient reserve, mixing cylinder sizes, omitting reserve storage space and ignoring project specifications.

13. Practical Site Notes

Label reserve cylinders clearly and store them under the environmental conditions recommended by the OEM.

14. Limitations

Reserve requirements vary by project and authority. Final provisions shall comply with project specifications and OEM recommendations.

15. Related Engineering Systems

Cylinder Bank, Manifold, Selector Valves, Fire Alarm Control Panel.

16. Cross References

Related FAQ: Reserve Cylinders

Related White Paper: VEP-002

Related Engineering Diagram: ED-036
