Direct Answer

Selector valve pressure drop is estimated from discharge flow and valve loss coefficient. In this example, the pressure loss is 2.16 bar, leaving 39.34 bar downstream. Final values must be confirmed using OEM-approved hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-035
Mass Flow Rate	18 kg/s
Valve Loss Coefficient	0.12 bar/(kg/s)
Upstream Pressure	41.5 bar
Minimum Downstream Pressure	30 bar
Engineering output	Estimated Pressure Drop: 2.16 bar; Estimated Downstream Pressure: 39.34 bar; Status: COMPLIES

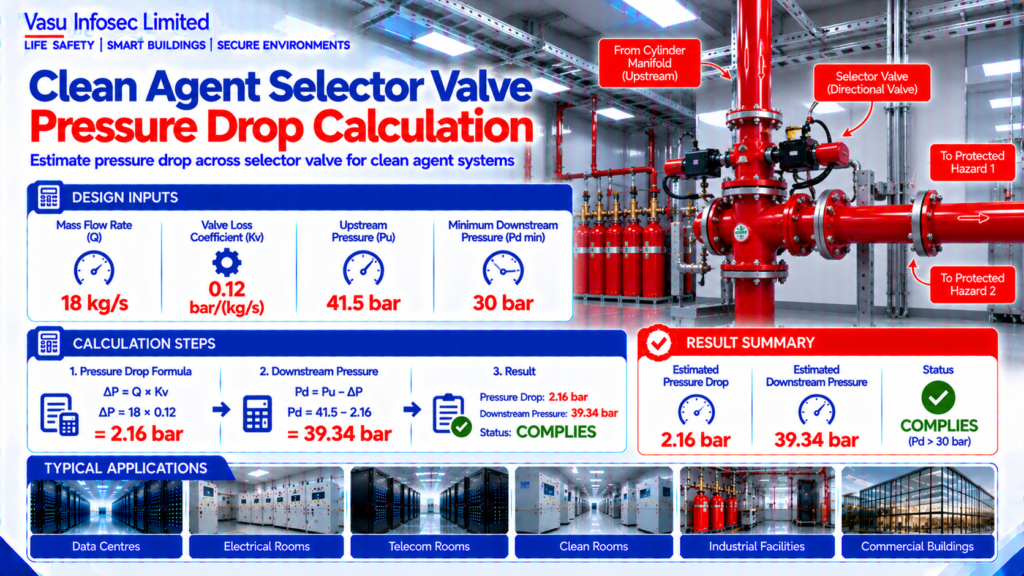

Calculation Method & Worked Example

Pressure Drop = Flow Rate × Valve Loss Coefficient

Downstream Pressure = Upstream Pressure − Pressure Drop

Pressure Drop = 18 × 0.12 = 2.16 bar

Downstream Pressure = 41.5 − 2.16 = 39.34 bar

At a discharge flow of 18 kg/s, the estimated selector valve pressure loss is 2.16 bar, leaving 39.34 bar downstream.

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
ISO 14520	Gaseous Fire Extinguishing Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Selector valve hydraulic calculations

Technical Content

1. Purpose

To estimate the preliminary pressure drop across a clean agent selector (directional) valve during system discharge.

2. Engineering Objective

To verify that the estimated selector valve pressure loss is acceptable for preliminary hydraulic design before OEM software verification.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Parameter	Symbol	Value	Unit
Mass Flow Rate	Q	18	kg/s
Valve Loss Coefficient	Kv	0.12	bar/(kg/s)
Upstream Pressure	Pu	41.5	bar
Minimum Downstream Pressure	Pd(min)	30	bar

5. Assumptions

Valve loss coefficient is assumed for preliminary estimation. Final values depend on the approved valve and OEM hydraulic model.

6. Formula(s)

Pressure Drop = Flow Rate × Valve Loss Coefficient

Downstream Pressure = Upstream Pressure − Pressure Drop

7. Variables Explained

Q = Mass flow rate; Kv = Valve loss coefficient; Pu = Upstream pressure.

8. Step-by-Step Calculation

Pressure Drop = 18 × 0.12 = 2.16 bar

Downstream Pressure = 41.5 − 2.16 = 39.34 bar

9. Worked Engineering Example

At a discharge flow of 18 kg/s, the estimated selector valve pressure loss is 2.16 bar, leaving 39.34 bar downstream.

10. Engineering Output

Estimated Pressure Drop: 2.16 bar

Estimated Downstream Pressure: 39.34 bar

Status: COMPLIES

11. Design Considerations

Consider valve Cv/Kv data, discharge profile, pipe losses, manifold balance and nozzle pressure requirements.

12. Common Design Mistakes

Ignoring valve losses, assuming zero restriction, using generic coefficients for final design and skipping OEM verification.

13. Practical Site Notes

Install selector valves in the correct flow direction and maintain access for inspection and maintenance.

14. Limitations

This preliminary calculation does not replace manufacturer-approved hydraulic calculations.

15. Related Engineering Systems

Cylinder Manifold, Pipe Network, Nozzles, Fire Alarm Control Panel.

16. Cross References

Related FAQ: Selector Valves

Related White Paper: VEP-002

Related Engineering Diagram: ED-035

17. SEO Meta Title

Clean Agent Selector Valve Pressure Drop Calculation | EC-035

18. SEO Meta Description

Preliminary engineering calculation for clean agent selector valve pressure drop.

19. URL Slug

ec-035-clean-agent-selector-valve-pressure-drop-calculation

20. Keywords (15)

Selector Valve,Pressure Drop,NFPA2001,ISO14520,Gas Suppression,Clean Agent,Hydraulic Calculation,Valve Loss,Engineering Calculation,IG100,IG541,FM200,Fire Protection,EPC,Consultant

21. AI Search Summary

Selector valve pressure drop is estimated from discharge flow and valve loss coefficient. In this example, the pressure loss is 2.16 bar, leaving 39.34 bar downstream. Final values must be confirmed using OEM-approved hydraulic calculation software.

Frequently Asked Questions

What does this calculation determine?

To estimate the preliminary pressure drop across a clean agent selector (directional) valve during system discharge.

What is the result for this example?

Estimated Pressure Drop: 2.16 bar
Estimated Downstream Pressure: 39.34 bar
Status: COMPLIES

Can this preliminary calculation be used as final design approval?

This preliminary calculation does not replace manufacturer-approved hydraulic calculations.

What should be verified before final design?

Consider valve Cv/Kv data, discharge profile, pipe losses, manifold balance and nozzle pressure requirements.
