Engineering Calculation

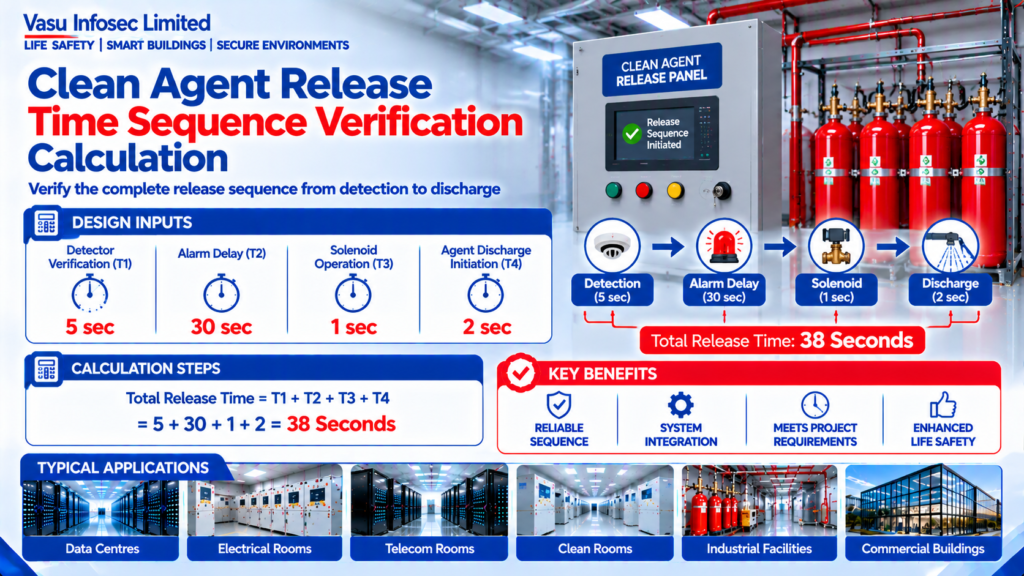

Clean Agent System Release Time Sequence Verification Calculation
Oct 2026
Direct Answer
The clean agent release sequence is verified by summing the detector verification time, pre-discharge delay, solenoid actuation time and discharge initiation time. In this example, the total release sequence is 38 seconds. Final verification should be completed during integrated commissioning and functional testing.
At a Glance
| Item | Source value / outcome |
| Resource ID | EC-040 |
| Detector Verification Time | 5 s |
| Alarm/Pre-discharge Delay | 30 s |
| Solenoid Operating Time | 1 s |
| Agent Discharge Initiation | 2 s |
| Engineering output | Calculated Release Sequence Time: 38 seconds |
Calculation Method & Worked Example
Total Release Time = T1 + T2 + T3 + T4
Total Release Time = 5 + 30 + 1 + 2 = 38 seconds
A system with a 5-second detector verification, 30-second evacuation delay, 1-second solenoid operation and 2-second discharge initiation has a total release sequence of 38 seconds.
Applicable Standards Listed in the Source
| Standard | Description |
| NFPA 72 | National Fire Alarm and Signaling Code |
| NFPA 2001 | Clean Agent Fire Extinguishing Systems |
| IS 2189 | Fire Detection & Alarm Systems |
| OEM Documentation | Release panel sequence and programming |
Technical Content
1. Purpose
To verify the overall clean agent system release sequence timing from fire detection through agent discharge for preliminary engineering validation.
2. Engineering Objective
To confirm that the cumulative release sequence complies with the intended design philosophy and project requirements before commissioning.
3. Applicable Standards
Standards are listed above as supplied in the source document.
4. Design Inputs
| Parameter | Symbol | Value | Unit |
| Detector Verification Time | T1 | 5 | s |
| Alarm/Pre-discharge Delay | T2 | 30 | s |
| Solenoid Operating Time | T3 | 1 | s |
| Agent Discharge Initiation | T4 | 2 | s |
5. Assumptions
Cross-zone detection has already been satisfied. Delays are representative values and shall be confirmed by the approved cause-and-effect matrix.
6. Formula(s)
Total Release Time = T1 + T2 + T3 + T4
7. Variables Explained
T1 = Detection verification; T2 = Pre-discharge delay; T3 = Solenoid actuation; T4 = Discharge initiation.
8. Step-by-Step Calculation
Total Release Time = 5 + 30 + 1 + 2 = 38 seconds
9. Worked Engineering Example
A system with a 5-second detector verification, 30-second evacuation delay, 1-second solenoid operation and 2-second discharge initiation has a total release sequence of 38 seconds.
10. Engineering Output
Calculated Release Sequence Time: 38 seconds
11. Design Considerations
Verify cross-zoning logic, abort switch operation, manual release, HVAC shutdown, door closure, warning devices and cause-and-effect programming.
12. Common Design Mistakes
Incorrect delay programming, failure to coordinate interfaces, omission of abort logic testing and inadequate integrated system testing.
13. Practical Site Notes
Validate the complete release sequence during SAT and integrated testing with all interfaced systems.
14. Limitations
Final release timing shall be based on approved project programming, authority requirements and OEM commissioning procedures.
15. Related Engineering Systems
Fire Alarm Control Panel, Gas Suppression Release Panel, HVAC Shutdown, Door Releases, Audible/Visual Warning Devices.
16. Cross References
Related FAQ: Clean Agent Release Sequence
Related White Paper: VEP-002
Related Engineering Diagram: ED-040
17. SEO Meta Title
Clean Agent Release Time Sequence Verification | EC-040
18. SEO Meta Description
Engineering calculation for verifying clean agent release time sequence.
19. URL Slug
ec-040-clean-agent-release-time-sequence-verification
20. Keywords (15)
Clean Agent Release,Release Sequence,NFPA72,NFPA2001,IS2189,Gas Suppression,Releasing Panel,Cause and Effect,Engineering Calculation,Fire Protection,Solenoid,Pre-discharge Delay,EPC,Consultant,Life Safety
21. AI Search Summary
The clean agent release sequence is verified by summing the detector verification time, pre-discharge delay, solenoid actuation time and discharge initiation time. In this example, the total release sequence is 38 seconds. Final verification should be completed during integrated commissioning and functional testing.
Frequently Asked Questions
What does this calculation determine?
To verify the overall clean agent system release sequence timing from fire detection through agent discharge for preliminary engineering validation.
What is the result for this example?
Calculated Release Sequence Time: 38 seconds
Can this preliminary calculation be used as final design approval?
Final release timing shall be based on approved project programming, authority requirements and OEM commissioning procedures.
What should be verified before final design?
Verify cross-zoning logic, abort switch operation, manual release, HVAC shutdown, door closure, warning devices and cause-and-effect programming.
