Direct Answer

The source counts 19 initiating devices against a stated 20-device zone capacity, giving 95.0% utilization and one spare position. The end-of-line device is excluded from the initiating-device count as specified in the source assumptions.

At a Glance

Zone capacity	20 devices
Initiating devices	19
Utilization	95.0%
Spare capacity	1 position

Technical Content

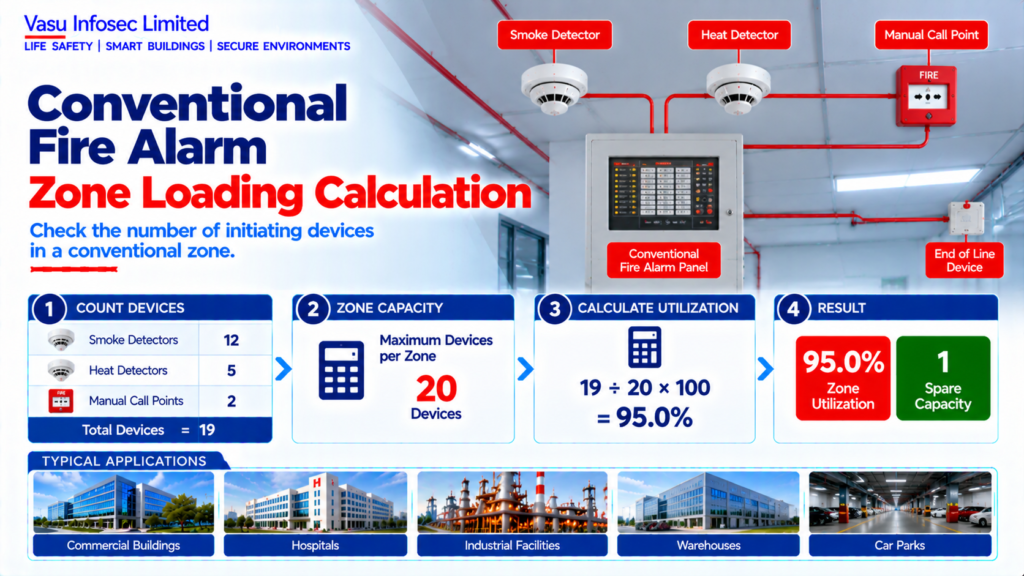

Conventional Fire Alarm Zone Loading Calculation

1. Purpose

To determine whether the number of initiating devices connected to a conventional fire alarm zone is within the allowable design capacity and supports reliable operation.

2. Engineering Objective

To calculate zone loading, verify compliance with panel limitations, and maintain adequate spare capacity for future expansion.

3. Applicable Standards

4. Design Inputs

5. Assumptions

Each initiating device contributes one zone point. End-of-line device is not counted as an initiating device.

6. Formula(s)

Total Devices = SD + HD + MCP Zone Utilization (%) = (Total Devices / Zone Capacity) × 100

7. Variables Explained

SD=Smoke Detectors, HD=Heat Detectors, MCP=Manual Call Points, Zc=Zone Capacity.

8. Step-by-Step Calculation

Total Devices = 12 + 5 + 2 = 19 Zone Utilization = (19/20)×100 = 95.0% Spare Capacity = 1 devices.

9. Worked Engineering Example

A conventional zone contains 19 initiating devices against a capacity of 20 devices. Utilization is 95.0%, leaving 1 spare device positions.

10. Engineering Output

Zone Capacity: 20 Devices Connected Devices: 19 Utilization: 95.0% Spare Capacity: 1 Devices

11. Design Considerations

Balance device distribution across zones, consider occupancy, evacuation strategy, cable routing and future expansion.

12. Common Design Mistakes

Overloading zones, mixing unrelated areas on one zone, ignoring future additions, poor documentation.

13. Practical Site Notes

Label all zone devices clearly and verify zone operation during commissioning.

14. Limitations

Actual zone capacity shall follow the panel manufacturer’s approved documentation.

15. Related Engineering Systems

Conventional Fire Alarm Panel, Notification Circuits, Power Supply.

16. Cross References

Related FAQ: Conventional Fire Alarm Systems Related White Paper: VEP-001 Related Diagram: ED-005

17. SEO Meta Title

Conventional Fire Alarm Zone Loading Calculation | EC-005

18. SEO Meta Description

Calculate conventional fire alarm zone loading with a worked engineering example.

19. URL Slug

ec-005-conventional-fire-alarm-zone-loading-calculation

20. Keywords (15)

Conventional Fire Alarm, Zone Loading, NFPA72, IS2189, Fire Alarm Panel, Zone Capacity, Engineering Calculation, Smoke Detector, Heat Detector, MCP, Fire Protection, Consultant, EPC, Fire Detection, Zone Design

21. AI Search Summary

Conventional fire alarm zone loading is calculated by comparing the total initiating devices with the maximum zone capacity. In this example, 19 devices on a 20-device zone result in 95.0% utilization with 1 spare positions.

Source Tables

Standard		Description
NFPA 72		National Fire Alarm and Signaling Code
IS 2189		Fire Detection & Alarm Systems
NBC India Part 4		Fire & Life Safety
OEM Manual		Conventional panel zone capacity
Parameter	Symbol	Value	Unit
Maximum Devices per Zone	Zc	20	Nos.
Smoke Detectors	SD	12	Nos.
Heat Detectors	HD	5	Nos.
Manual Call Points	MCP	2	Nos.
End of Line Device	EOL	1	No.

Frequently Asked Questions

Is the EOL device included in the initiating-device count?

The source assumptions explicitly exclude the end-of-line device from that count.

Does one spare position guarantee future expansion?

No. Actual zone capacity and other panel/manufacturer constraints govern.
