Fire Alarm Circuit Voltage Drop Calculation

1. Purpose

To calculate voltage drop in a fire alarm notification appliance circuit and verify that the end-of-line voltage remains within the manufacturer’s acceptable operating range.

2. Engineering Objective

To determine whether cable size and circuit length are adequate to ensure reliable operation of fire alarm notification appliances.

3. Applicable Standards

4. Design Inputs

5. Assumptions

Copper conductor, DC circuit, two-core cable, uniform conductor temperature and simultaneous alarm loading.

6. Formula(s)

Circuit Resistance R = (2 × ρ × L) / A Voltage Drop Vd = I × R End Voltage = Vs − Vd

7. Variables Explained

ρ = Copper resistivity; L = One-way cable length; A = Cable cross-sectional area; I = Circuit current.

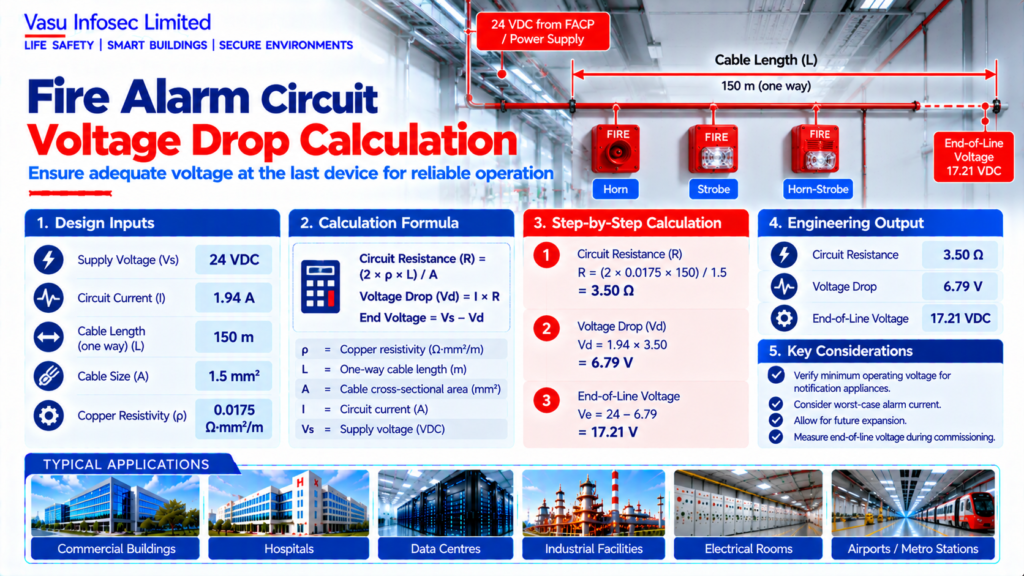

8. Step-by-Step Calculation

R=(2×0.0175×150)/1.5=3.50 Ω Vd=1.94×3.50=6.79 V End Voltage=24−6.79=17.21 V

9. Worked Engineering Example

A 24 VDC NAC supplying 1.94 A over 150 m of 1.5 mm² cable has a calculated voltage drop of 6.79 V, leaving 17.21 V at the last device.

10. Engineering Output

Resistance: 3.50 Ω Voltage Drop: 6.79 V End-of-Line Voltage: 17.21 V

11. Design Considerations

Verify minimum operating voltage for notification appliances, consider worst-case alarm current and future expansion.

12. Common Design Mistakes

Ignoring return conductor length, using incorrect cable size, omitting worst-case current.

13. Practical Site Notes

Measure end-of-line voltage during commissioning under full alarm load.

14. Limitations

Final design shall comply with manufacturer requirements and project specifications.
