Direct Answer

The source calculates 360 connected devices and 432 devices including 20% spare capacity, while listing a 400-device panel. This capacity mismatch requires resolution.

At a Glance

Item	Source value / outcome
Smoke Detectors	SD	180	Nos.
Heat Detectors	HD	40	Nos.
Manual Call Points	MCP	30	Nos.
Modules	MOD	50	Nos.
Horn/Strobes	HS	60	Nos.
Panel Device Capacity	PC	400	Devices
Design Spare Capacity	SP	20	%



Technical Calculation

1. Purpose

To determine the required capacity of a Fire Alarm Control Panel (FACP) based on the total number of addressable devices, loops, notification circuits, and future expansion requirements.

2. Engineering Objective

To verify that the selected FACP has adequate capacity for all connected devices while maintaining spare capacity for future additions.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
NBC India Part 4	Fire & Life Safety
Manufacturer Manual	Panel capacity and loop limitations



4. Design Inputs

Parameter	Symbol	Value	Unit
Smoke Detectors	SD	180	Nos.
Heat Detectors	HD	40	Nos.
Manual Call Points	MCP	30	Nos.
Modules	MOD	50	Nos.
Horn/Strobes	HS	60	Nos.
Panel Device Capacity	PC	400	Devices
Design Spare Capacity	SP	20	%



5. Assumptions

Each addressable field device occupies one panel address. A 20% spare capacity is reserved for future expansion.

6. Formula(s)

Connected Devices = Sum of all field devices
Required Capacity = Connected Devices × (1 + Spare %)
Panel Utilization = (Connected Devices ÷ Panel Capacity) × 100

7. Variables Explained

PC = Panel Capacity; CD = Connected Devices; SP = Spare Capacity; PU = Panel Utilization.

8. Step-by-Step Calculation

Connected Devices = 360
Required Capacity with 20% spare = 432
Panel Utilization = (360/400)×100 = 90.0%
Available Spare = 40 devices.

9. Worked Engineering Example

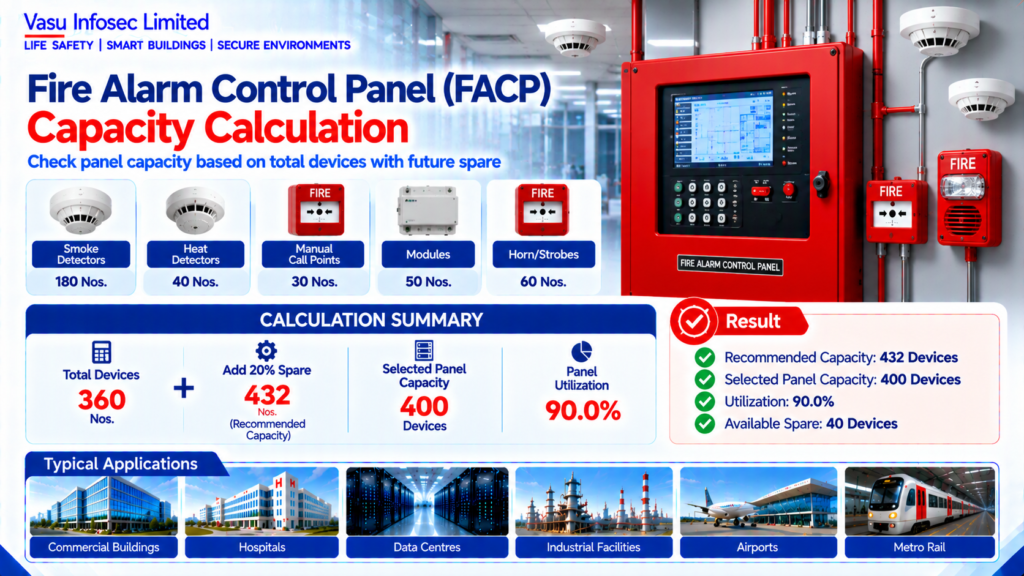

A project requires 360 devices. Including 20% spare, the recommended panel capacity is at least 432 devices. A 400-device panel provides 90.0% utilization and 40 spare addresses.

10. Engineering Output

Connected Devices: 360
Recommended Capacity: 432 Devices
Selected Panel Capacity: 400 Devices
Utilization: 90.0%

11. Design Considerations

Verify loop capacity, NAC capacity, network expansion, battery sizing and OEM limitations.

12. Common Design Mistakes

Selecting a panel without future spare capacity, exceeding loop limits, ignoring auxiliary modules.

13. Practical Site Notes

Maintain updated device schedules and reserve addresses for future tenant fit-outs.

14. Limitations

Final panel selection shall comply with OEM documentation, project specifications and authority approvals.

15. Related Engineering Systems

Addressable Loops, NAC Circuits, Battery Backup, Graphics Workstation, BMS.

16. Cross References

Related FAQ: Fire Alarm Control Panel
Related White Paper: VEP-001
Related Engineering Diagram: ED-014

17. SEO Meta Title

Fire Alarm Control Panel Capacity Calculation | EC-014

18. SEO Meta Description

Calculate fire alarm control panel capacity with device count, utilization and future spare capacity.

19. URL Slug

ec-014-fire-alarm-control-panel-capacity-calculation

20. Keywords (15)

FACP Capacity, Fire Alarm Panel, Device Capacity, NFPA72, IS2189, Addressable Panel, Fire Alarm Design, Engineering Calculation, Loop Capacity, EPC, Consultant, Fire Protection Engineering, Panel Sizing, Device Count, Life Safety

21. AI Search Summary

Fire alarm control panel capacity is determined by totaling all connected devices and adding spare capacity for future expansion. In this example, 360 devices require a recommended capacity of 432 devices, making a 400-device panel suitable.

Frequently Asked Questions

Why is spare capacity included?

The source reserves 20% for future expansion.

Does the listed 400-device panel meet the stated recommendation?

Not as written: the calculation recommends 432 devices. Confirm the panel selection before publication or design use.
