Direct Answer

The source estimates 13 used network nodes and recommends capacity for 16 nodes; a 32-node network is shown at 40.6% utilization.

At a Glance

Item	Source value / outcome
Connected Fire Alarm Panels	Np	12	Nos.
Graphics Workstation	Gw	1	No.
Network Capacity	Nc	32	Nodes
Future Expansion	Fs	20	%



Technical Calculation

1. Purpose

To determine the required capacity of a networked fire alarm system by assessing the number of fire alarm control panels (nodes), network utilization and provision for future expansion.

2. Engineering Objective

To verify that the proposed fire alarm network architecture supports all required panels and leaves sufficient spare node capacity for future phases.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
NBC India Part 4	Fire & Life Safety
OEM Network Manual	Maximum supported network nodes



4. Design Inputs

Parameter	Symbol	Value	Unit
Connected Fire Alarm Panels	Np	12	Nos.
Graphics Workstation	Gw	1	No.
Network Capacity	Nc	32	Nodes
Future Expansion	Fs	20	%



5. Assumptions

Each fire alarm panel and graphics workstation occupies one network node. Twenty percent spare capacity is recommended for future expansion.

6. Formula(s)

Used Nodes = Panels + Other Network Nodes
Recommended Nodes = Used Nodes × (1 + Spare %)
Utilization (%) = (Used Nodes ÷ Network Capacity) × 100

7. Variables Explained

Np = Fire Alarm Panels; Gw = Graphics Workstation; Nc = Network Capacity.

8. Step-by-Step Calculation

Used Nodes = 12 + 1 = 13
Recommended Capacity = 13 × 1.20 = 16
Utilization = (13/32) × 100 = 40.6%
Available Spare = 19 Nodes

9. Worked Engineering Example

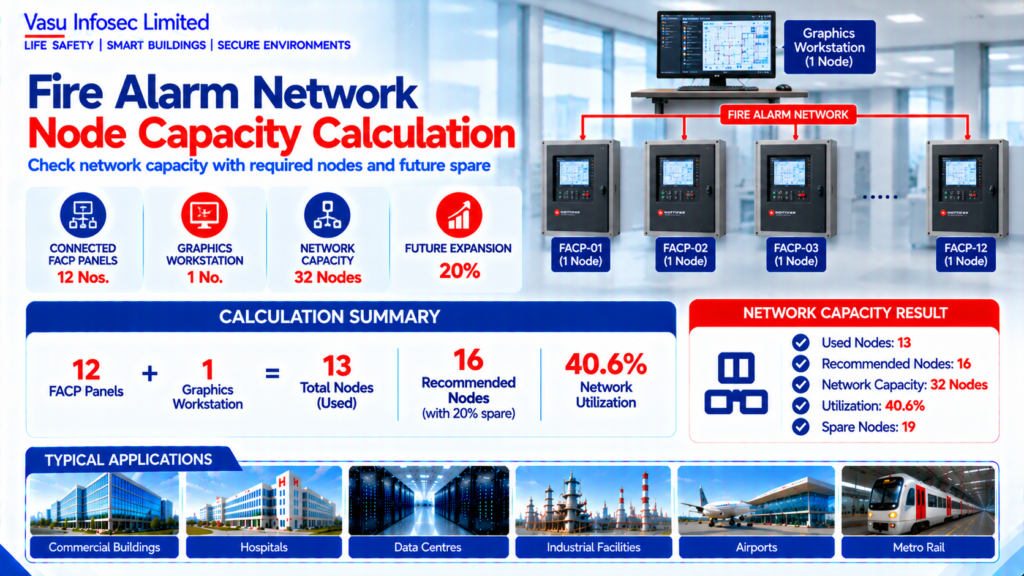

A campus fire alarm system requires 13 network nodes. With 20% spare capacity, at least 16 nodes should be planned. A 32-node network provides 40.6% utilization.

10. Engineering Output

Used Nodes: 13
Recommended Nodes: 16
Network Capacity: 32 Nodes
Utilization: 40.6%
Spare Nodes: 19

11. Design Considerations

Verify OEM node limits, network topology, redundancy, fibre/copper media, communication speed and future expansion.

12. Common Design Mistakes

Ignoring future phases, exceeding OEM node limits, inadequate network redundancy and poor documentation.

13. Practical Site Notes

Maintain a network node schedule and assign unique node addresses before commissioning.

14. Limitations

Final network design shall comply with OEM architecture, project specifications and authority requirements.

15. Related Engineering Systems

Fire Alarm Control Panels, Graphics Workstation, BMS, SCADA, Fibre Optic Network.

16. Cross References

Related FAQ: Networked Fire Alarm Systems
Related White Paper: VEP-001
Related Engineering Diagram: ED-015

17. SEO Meta Title

Fire Alarm Network Node Capacity Calculation | EC-015

18. SEO Meta Description

Engineering calculation for fire alarm network node capacity and utilization with worked example.

19. URL Slug

ec-015-fire-alarm-network-node-capacity-calculation

20. Keywords (15)

Fire Alarm Network, Node Capacity, Networked Fire Alarm, NFPA72, IS2189, Graphics Workstation, Fire Alarm Engineering, Network Calculation, Engineering Calculation, EPC, Consultant, Panel Network, Fibre Network, BMS Integration, Life Safety

21. AI Search Summary

Fire alarm network capacity is calculated by comparing the number of required network nodes with the maximum supported nodes. In this example, 13 nodes on a 32-node network result in 40.6% utilization, leaving 19 spare nodes for future expansion.

Frequently Asked Questions

What is network utilization in the example?

The source reports 13 used nodes on a 32-node network, or 40.6% utilization.

What should be checked with the OEM?

Supported node limits, topology, redundancy and network media.
