Technical Calculation

1. Purpose

To determine the minimum capacity of the fire alarm power supply required to support all connected loads under normal and alarm operating conditions with an appropriate design margin.

2. Engineering Objective

To calculate the total connected current, apply an engineering spare factor and verify the suitability of the selected fire alarm power supply.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
NBC India Part 4	Fire & Life Safety
Manufacturer Manual	Power supply ratings and loading limits



4. Design Inputs

Parameter	Symbol	Value	Unit
Panel Standby Load	I1	0.45	A
Loop Devices	I2	0.60	A
Notification Appliances	I3	1.90	A
Auxiliary Loads	I4	0.35	A
Design Spare	SF	25	%



5. Assumptions

All connected loads operate simultaneously during the worst-case alarm condition. A 25% design spare is included.

6. Formula(s)

Total Load = I1 + I2 + I3 + I4
Required Power Supply = Total Load × (1 + Spare Factor)

7. Variables Explained

I1 = Panel current; I2 = Loop current; I3 = NAC current; I4 = Auxiliary current; SF = Spare factor.

8. Step-by-Step Calculation

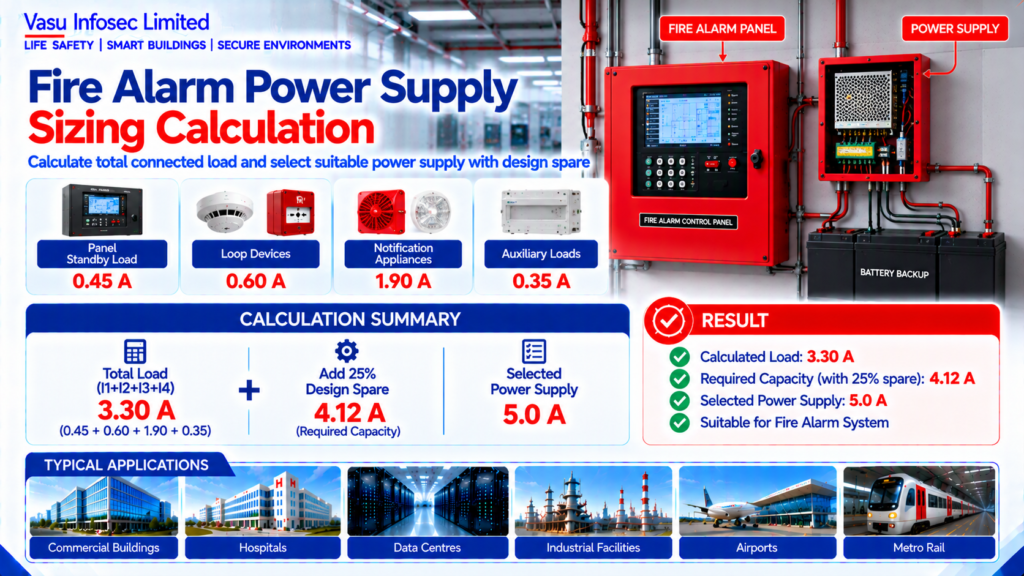

Total Load = 0.45 + 0.60 + 1.90 + 0.35 = 3.30 A
Required Rating = 3.30 × 1.25 = 4.12 A
Selected Standard Power Supply = 5.0 A

9. Worked Engineering Example

A fire alarm system with a combined alarm load of 3.30 A requires at least 4.12 A after applying a 25% engineering margin. A standard 5.0 A power supply is therefore suitable.

10. Engineering Output

Calculated Load: 3.30 A
Required Capacity: 4.12 A
Selected Power Supply: 5.0 A

11. Design Considerations

Verify charger capacity, battery charging current, ambient temperature, voltage drop and OEM loading limits.

12. Common Design Mistakes

Ignoring auxiliary loads, omitting spare capacity, undersizing power supplies and overlooking future expansion.

13. Practical Site Notes

Label all power circuits, verify current during commissioning and maintain load schedules for future modifications.

14. Limitations

Final power supply selection shall comply with the equipment manufacturer’s documentation and project specifications.

15. Related Engineering Systems

Fire Alarm Control Panel, Battery Backup, NAC Circuits, Addressable Loops, Auxiliary Power Supplies.

16. Cross References

Related FAQ: Fire Alarm Power Supplies
Related White Paper: VEP-001
Related Engineering Diagram: ED-019
