Direct Answer

The source estimates a total response sequence of 65 seconds by adding 40 s, 18 s, 2 s and 5 s; this is a simplified estimate, not a guaranteed response time.

At a Glance

Item	Source value / outcome
Smoke Travel Time	T1	40	s
Detector Response Delay	T2	18	s
Panel Processing Time	T3	2	s
Notification Delay	T4	5	s



Technical Calculation

1. Purpose

To estimate the expected response time of a fire detector from the onset of a fire under defined design assumptions for preliminary engineering evaluation.

2. Engineering Objective

To estimate detector response based on fire growth assumptions, smoke travel time, detector activation characteristics and system processing time.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
NFPA 92	Smoke Control Systems
OEM Manual	Detector response characteristics



4. Design Inputs

Parameter	Symbol	Value	Unit
Smoke Travel Time	T1	40	s
Detector Response Delay	T2	18	s
Panel Processing Time	T3	2	s
Notification Delay	T4	5	s



5. Assumptions

Normal ceiling height, unobstructed smoke movement, detector installed in accordance with applicable standards and manufacturer instructions.

6. Formula(s)

Total Estimated Response Time = T1 + T2 + T3 + T4

7. Variables Explained

T1 = Smoke travel time; T2 = Detector response delay; T3 = Panel processing time; T4 = Notification initiation delay.

8. Step-by-Step Calculation

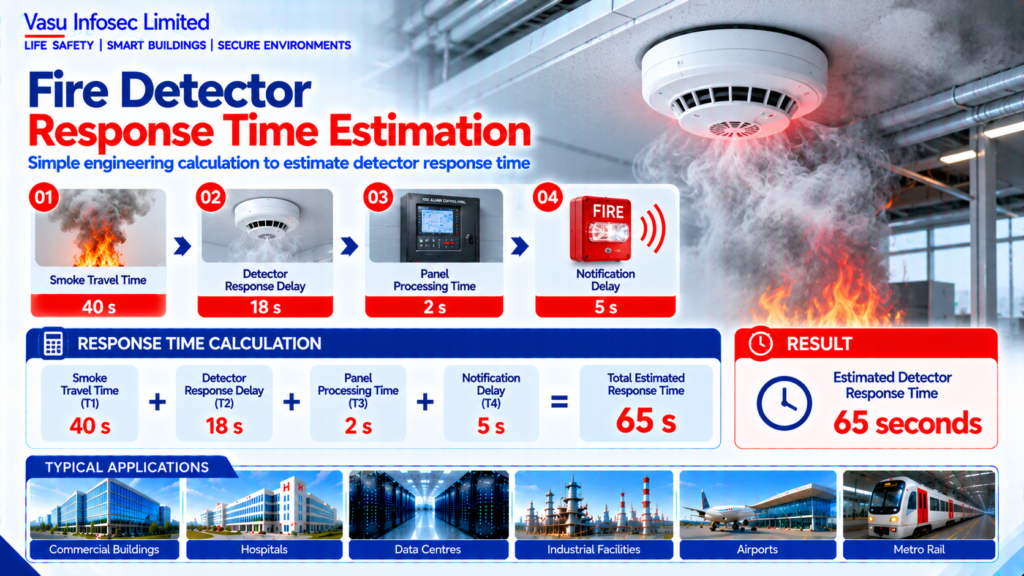

40 + 18 + 2 + 5 = 65 seconds

9. Worked Engineering Example

A detector receiving smoke after 40 seconds, responding in 18 seconds, with 2 seconds panel processing and 5 seconds notification delay gives an estimated response time of 65 seconds.

10. Engineering Output

Estimated Total Response Time: 65 seconds

11. Design Considerations

Actual response depends on fire growth, detector type, ceiling geometry, airflow, detector spacing and installation quality. Detailed modelling may require fire dynamics or CFD software.

12. Common Design Mistakes

Ignoring HVAC effects, excessive detector spacing, unsuitable detector selection and assuming identical response in all occupancies.

13. Practical Site Notes

Verify response through functional testing during commissioning and integrated system testing.

14. Limitations

This is a simplified engineering estimate. Actual performance shall be validated by testing and applicable design methods.

15. Related Engineering Systems

Smoke Detection, Fire Alarm Control Panel, Smoke Management, Notification Appliances.
