Direct Answer

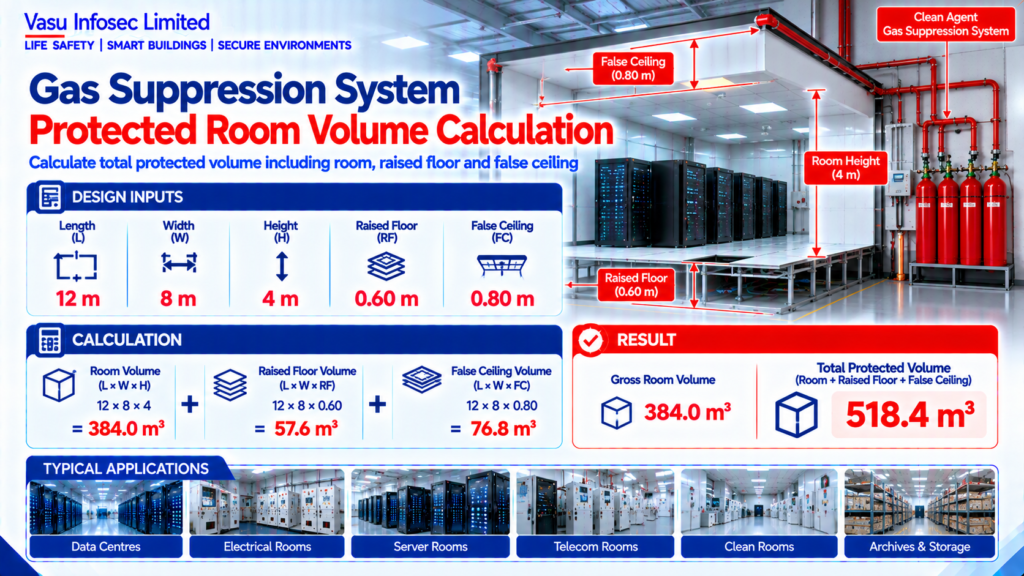

Protected enclosure volume is calculated from room dimensions and any protected raised floor or ceiling voids. In this example the total protected volume is 518.4 m³ and forms the basis for clean agent quantity calculations using OEM software.

At a Glance

Length	L | 12 | m
Width	W | 8 | m
Height	H | 4 | m
Raised Floor	RF | 0.60 | m
False Ceiling	FC | 0.80 | m
Engineering output	Gross Room Volume: 384.0 m³ Total Protected Volume: 518.4 m³
Use limitation	Preliminary estimate; final verification as stated in source

Calculation Method & Worked Example

Room Volume = L × W × H

Total Protected Volume = Room + Raised Floor + False Ceiling Volumes

Main Room = 384.0 m³

Raised Floor = 57.6 m³

False Ceiling = 76.8 m³

Total Protected Volume = 518.4 m³

Applicable Standards Listed in the Source

Standard	Description
NFPA 2001	Clean Agent Fire Extinguishing Systems
IS 15493	Clean agent systems
NBC India Part 4	Fire & Life Safety
OEM Design Manual	Agent calculation software

Technical Content

1. Purpose

To calculate the gross protected enclosure volume for a clean agent gas suppression system as the basis for agent quantity estimation and system design.

2. Engineering Objective

To determine the protected room volume using room dimensions before applying agent concentration and OEM software calculations.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Length | L | 12 | m; Width | W | 8 | m; Height | H | 4 | m; Raised Floor | RF | 0.60 | m; False Ceiling | FC | 0.80 | m

5. Assumptions

Raised floor and false ceiling voids are included because they are protected by the suppression system.

6. Formula(s)

Room Volume = L × W × H

Total Protected Volume = Room + Raised Floor + False Ceiling Volumes



7. Variables Explained

L=Length; W=Width; H=Height.

8. Step-by-Step Calculation

Main Room = 384.0 m³

Raised Floor = 57.6 m³

False Ceiling = 76.8 m³

9. Worked Engineering Example

A room measuring 12 × 8 × 4 m with 600 mm raised floor and 800 mm false ceiling has a total protected volume of 518.4 m³.

10. Engineering Output

Gross Room Volume: 384.0 m³

Total Protected Volume: 518.4 m³





11. Design Considerations

Include all communicating voids. Verify enclosure integrity. Final agent quantity shall be calculated using OEM software.

12. Common Design Mistakes

Ignoring ceiling/floor voids, using incorrect dimensions, excluding cable basements or shared spaces.

13. Practical Site Notes

Confirm as-built dimensions before releasing cylinder sizing.

14. Limitations

This calculation determines enclosure volume only. Agent mass requires concentration, temperature and OEM software verification.

15. Related Engineering Systems

Gas Suppression, Fire Alarm, Door Fan Test, HVAC Shutdown.

16. Cross References

Related FAQ: Gas Suppression Design

Related White Paper: VEP-002

Related Diagram: ED-021
