Direct Answer

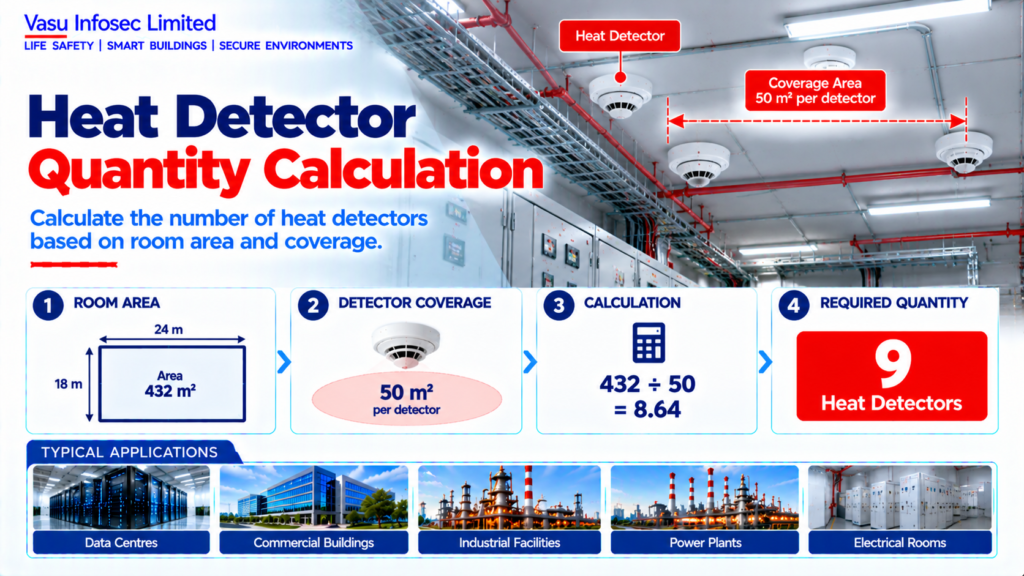

For a 24 m × 18 m room (432 m²) and stated nominal coverage of 50 m² per heat detector, the calculation gives 8.64 detectors, rounded up to 9. This is a preliminary quantity calculation, not a final detector layout.

At a Glance

Room area	432 m²
Nominal coverage	50 m² per detector
Calculated quantity	8.64
Rounded quantity	9 heat detectors

Technical Content

Heat Detector Coverage & Quantity Calculation

1. Purpose

To determine the minimum number of point heat detectors required to protect a given area in accordance with applicable standards and manufacturer recommendations.

2. Engineering Objective

To calculate the required quantity of heat detectors based on room dimensions, detector coverage, ceiling characteristics and engineering design criteria.

3. Applicable Standards

4. Design Inputs

5. Assumptions

Flat unobstructed ceiling, normal ambient conditions, nominal detector coverage permitted by manufacturer.

6. Formula(s)

A = L × W N = A / C Final Quantity = Round Up(N)

7. Variables Explained

A = Area (m²), L = Length, W = Width, C = Coverage per detector, N = Number of detectors.

8. Step-by-Step Calculation

Area = 24 × 18 = 432 m² Detector Quantity = 432 ÷ 50 = 8.64 Required Quantity = 9 Heat Detectors.

9. Worked Engineering Example

For a 24 m × 18 m electrical equipment room using heat detectors with 50 m² nominal coverage, 9 detectors are required after rounding up.

10. Engineering Output

Room Area: 432 m² Coverage: 50 m²/Detector Calculated Quantity: 8.64 Required Quantity: 9 Nos.

11. Design Considerations

Verify spacing, temperature classification, ceiling height, beams, HVAC influence and manufacturer recommendations.

12. Common Design Mistakes

Incorrect detector type, ignoring ceiling height, exceeding spacing limits, failing to coordinate with other services.

13. Practical Site Notes

Install away from heat sources unless specifically intended; maintain accessibility for testing.

14. Limitations

Final detector layout shall comply with applicable standards and manufacturer installation instructions.

15. Related Engineering Systems

Fire Alarm Control Panel, Notification Appliances, BMS, Smoke Management.

16. Cross References

Related FAQ: Heat Detectors Related White Paper: VEP-001 Related Case Study: CS-003 Related Diagram: ED-003

17. SEO Meta Title

Heat Detector Coverage & Quantity Calculation | EC-003

18. SEO Meta Description

19. URL Slug

ec-003-heat-detector-coverage-quantity-calculation

20. Keywords (15)

Heat Detector, Detector Coverage, NFPA72, IS2189, Fire Alarm Design, Heat Detector Calculation, Fire Protection Engineering, Detector Spacing, Engineering Calculation, Rate of Rise Detector, Fixed Temperature Detector, Fire Detection, Building Safety, Consultant, EPC

21. AI Search Summary

Heat detector quantity is calculated by dividing the protected area by the allowable detector coverage and rounding up to the next whole detector. For a 432 m² room with 50 m² coverage, 9 heat detectors are required.
