Direct Answer

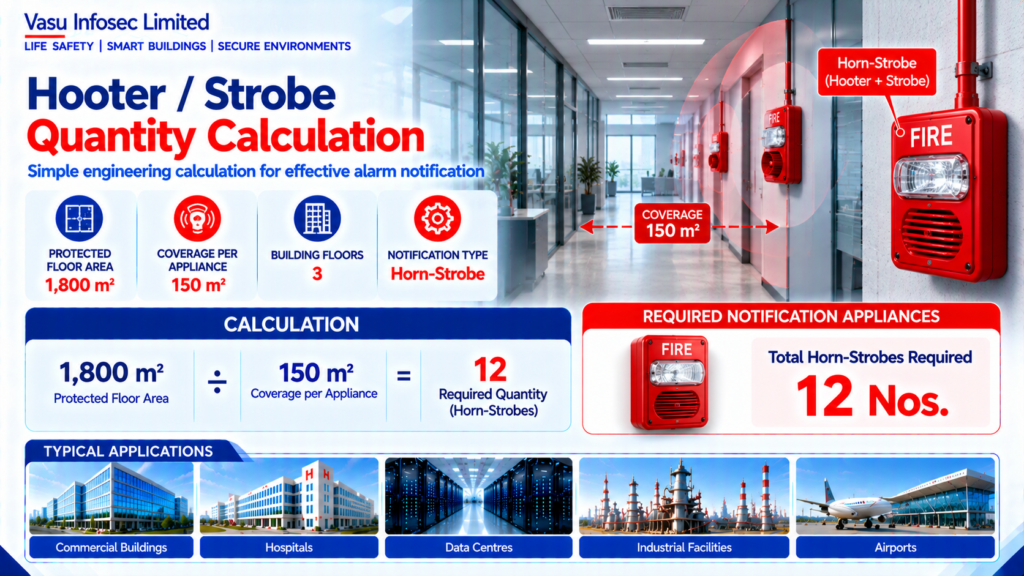

The source estimates 12 horn-strobe notification appliances from 1,800 m² ÷ 150 m² per appliance; clarify whether 1,800 m² is total or per-floor area.

At a Glance

Item	Source value / outcome
Protected Floor Area	A	1800	m²
Coverage per Appliance	C	150	m²
Building Floors	F	3	Nos.
Notification Type		Horn-Strobe	–



Technical Calculation

1. Purpose

To estimate the quantity of audible and visual notification appliances required to achieve effective alarm notification coverage throughout the protected building.

2. Engineering Objective

To calculate the preliminary number of hooters, strobes, and combined horn-strobes based on floor area, occupancy, audibility, visibility and engineering design criteria.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
NBC India Part 4	Fire & Life Safety
IEC 60849 / EN 54	Emergency alarm notification guidance
OEM Manual	Notification appliance coverage



4. Design Inputs

Parameter	Symbol	Value	Unit
Protected Floor Area	A	1800	m²
Coverage per Appliance	C	150	m²
Building Floors	F	3	Nos.
Notification Type		Horn-Strobe	–



5. Assumptions

Nominal coverage of 150 m² per notification appliance. Final placement subject to audibility and visibility verification.

6. Formula(s)

Quantity (N) = Protected Area ÷ Coverage per Appliance; Final Quantity = Round Up(N)

7. Variables Explained

A = Protected Area; C = Coverage per Appliance; N = Required Quantity.

8. Step-by-Step Calculation

Protected Area = 1800 m²
Coverage = 150 m²/appliance
N = 1800 ÷ 150 = 12
Required Quantity = 12 appliances.

9. Worked Engineering Example

A three-storey commercial building with a total protected area of 1800 m² requires 12 horn-strobes based on the assumed engineering coverage.

10. Engineering Output

Protected Area: 1800 m²
Coverage per Appliance: 150 m²
Required Horn-Strobes: 12 Nos.

11. Design Considerations

Verify sound pressure levels, visual intensity, occupancy type, ambient noise, ceiling height and appliance synchronization.

12. Common Design Mistakes

Ignoring ambient noise, inadequate visual coverage, excessive circuit loading and poor device placement.

13. Practical Site Notes

Coordinate appliance locations with architectural finishes and verify audibility during commissioning.

14. Limitations

Final appliance quantity shall comply with applicable standards, project specifications and OEM guidance.

15. Related Engineering Systems

Fire Alarm Control Panel, NAC Circuits, Battery Backup, Emergency Voice Alarm.

16. Cross References

Related FAQ: Notification Appliances
Related White Paper: VEP-001
Related Engineering Diagram: ED-013

17. SEO Meta Title

Hooter and Strobe Quantity Calculation | EC-013

18. SEO Meta Description

Engineering calculation for estimating hooter and strobe quantity using protected area and coverage.

19. URL Slug

ec-013-hooter-strobe-quantity-calculation

20. Keywords (15)

Hooter Calculation, Strobe Calculation, Notification Appliance, Fire Alarm Design, NFPA72, IS2189, Horn Strobe, Fire Protection Engineering, Engineering Calculation, Alarm Coverage, EPC, Consultant, Life Safety, NAC, Building Safety

21. AI Search Summary

The number of hooters or horn-strobes is estimated by dividing the protected floor area by the nominal coverage per appliance. For a protected area of 1800 m² and assumed coverage of 150 m² per appliance, 12 notification appliances are required before detailed engineering verification.

Frequently Asked Questions

How is the quantity estimated?

Divide the stated protected area by assumed coverage per appliance and round up if needed.

Is area coverage alone sufficient?

No. The source requires audibility, visibility, occupancy, ambient noise and OEM checks.
