Direct Answer

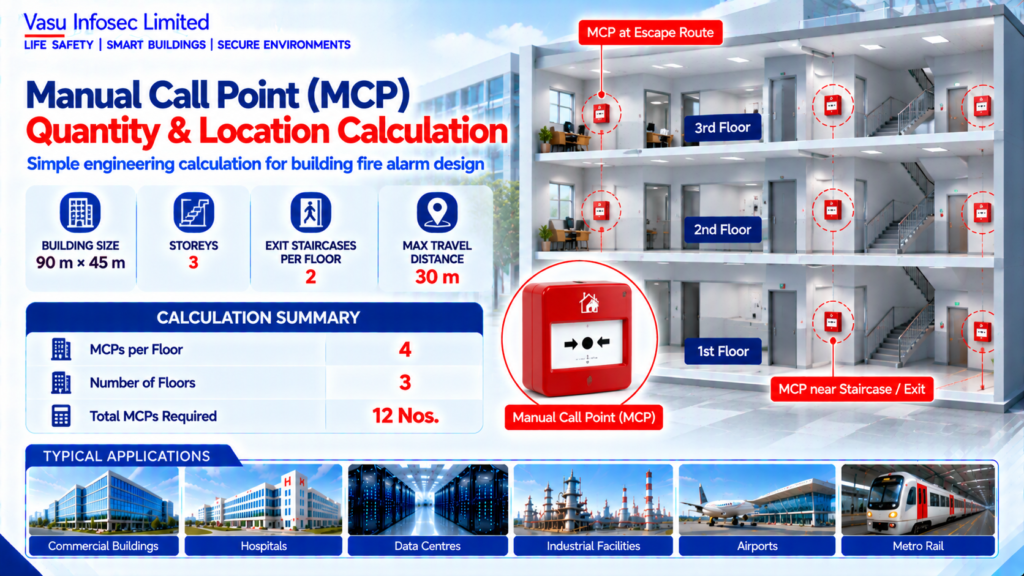

The source estimates 12 manual call points (MCPs), based on four per floor across three floors; the layout-based count needs detailed verification.

At a Glance

Item	Source value / outcome
Building Length	L	90	m
Building Width	W	45	m
Storeys	N	3	Nos.
Exit Staircases per Floor	E	2	Nos.
Max Travel Distance	Td	30	m



Technical Calculation

1. Purpose

To estimate the quantity and preliminary locations of Manual Call Points (MCPs) required to provide accessible manual fire alarm activation throughout a building.

2. Engineering Objective

To calculate the minimum number of MCPs based on travel distance, exits and building layout while supporting code-compliant emergency notification.

3. Applicable Standards

Standard	Description
NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Fire Detection & Alarm Systems
NBC India Part 4	Fire & Life Safety
EN 54-11	Manual Call Points
OEM Manual	Installation guidance



4. Design Inputs

Parameter	Symbol	Value	Unit
Building Length	L	90	m
Building Width	W	45	m
Storeys	N	3	Nos.
Exit Staircases per Floor	E	2	Nos.
Max Travel Distance	Td	30	m



5. Assumptions

MCPs are provided near exits, staircases and along escape routes. Building layout permits maximum travel distance of 30 m to an MCP.

6. Formula(s)

Estimated MCP Quantity = MCPs per Floor × Number of Floors

7. Variables Explained

N = Number of Floors; E = Exit Staircases; Td = Maximum Travel Distance.

8. Step-by-Step Calculation

MCPs required per floor = 4
Number of floors = 3
Total MCPs = 4 × 3 = 12

9. Worked Engineering Example

A three-storey office building with two protected staircases requires approximately 4 MCPs per floor, giving a total of 12 MCPs, subject to detailed layout verification.

10. Engineering Output

Estimated MCPs per Floor: 4
Total MCPs: 12 Nos.

11. Design Considerations

Locate MCPs at exits, staircase landings and escape routes. Mount at accessible height and ensure clear visibility.

12. Common Design Mistakes

Installing MCPs behind doors, exceeding travel distance, poor signage and inaccessible mounting.

13. Practical Site Notes

Coordinate locations with architectural plans and evacuation routes before installation.

14. Limitations

Final MCP quantity and locations shall comply with applicable codes and approved shop drawings.

15. Related Engineering Systems

Fire Alarm Control Panel, Notification Appliances, Emergency Communication System.

16. Cross References

Related FAQ: Manual Call Points
Related White Paper: VEP-001
Related Diagram: ED-012

17. SEO Meta Title

Manual Call Point Quantity & Location Calculation | EC-012

18. SEO Meta Description

Engineering calculation to estimate manual call point quantity and locations using travel distance principles.

19. URL Slug

ec-012-manual-call-point-quantity-location-calculation

20. Keywords (15)

Manual Call Point, MCP Calculation, Fire Alarm Design, NFPA72, IS2189, EN54-11, Fire Protection Engineering, Travel Distance, Engineering Calculation, Fire Alarm System, EPC, Consultant, Emergency Exit, Building Safety, Life Safety

21. AI Search Summary

Manual Call Point quantity is estimated using building layout, exits, floors and maximum travel distance requirements. In this example, a three-storey building requires approximately 12 MCPs before detailed design verification.

Frequently Asked Questions

How many MCPs are estimated in this example?

The source estimates four per floor over three floors, giving 12 MCPs.

What must be checked before finalising?

Approved shop drawings, exits, escape routes and maximum travel distance.
