Direct Answer

The listed horns, strobes and horn-strobes draw a calculated total of 1.940 A. Against the stated 3.0 A NAC rating, this is 64.7% utilization with 1.060 A spare capacity, subject to OEM ratings and voltage-drop verification.

At a Glance

NAC rating	3.0 A
Connected load	1.940 A
Utilization	64.7%
Spare capacity	1.060 A

Technical Content

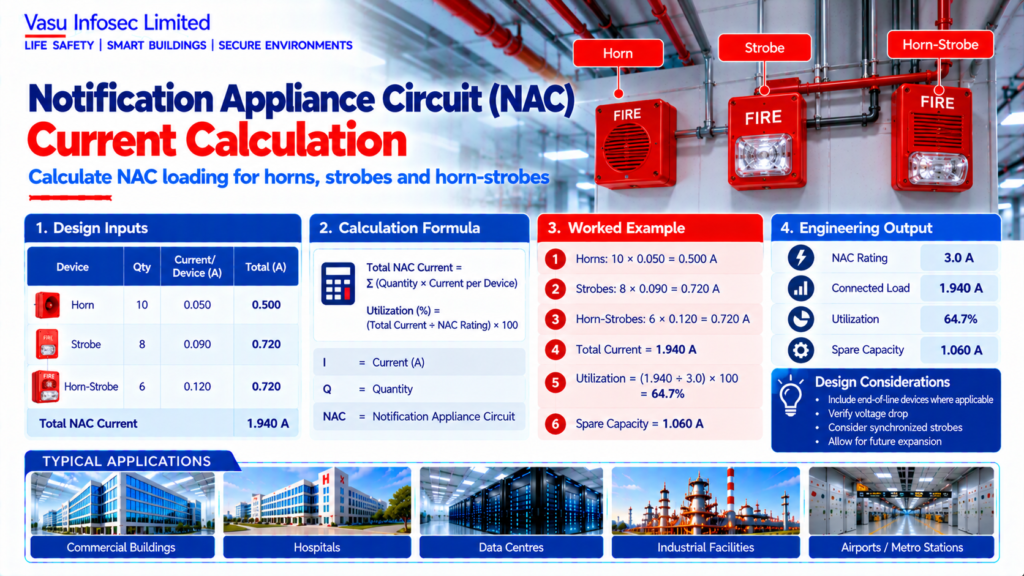

Notification Appliance Circuit (NAC) Current Calculation

1. Purpose

To calculate the total Notification Appliance Circuit (NAC) current and verify that the connected audible and visual notification appliances do not exceed the rated output current of the Fire Alarm Control Panel or external power supply.

2. Engineering Objective

To determine NAC loading, verify spare capacity, and ensure reliable operation of horns, strobes and horn-strobes during alarm conditions.

3. Applicable Standards

4. Design Inputs

5. Assumptions

All notification appliances operate simultaneously under alarm. Device currents are taken from the manufacturer’s published data.

6. Formula(s)

Total NAC Current = Σ (Quantity × Current per Device) Utilization (%) = (Total Current ÷ NAC Rating) × 100

7. Variables Explained

I = Current (A); Q = Quantity; NAC = Notification Appliance Circuit.

8. Step-by-Step Calculation

Horns: 10×0.050=0.500 A Strobes: 8×0.090=0.720 A Horn-Strobes: 6×0.120=0.720 A Total Current=1.940 A Utilization=(1.940/3.0)×100=64.7% Spare Capacity=1.060 A

9. Worked Engineering Example

A NAC rated at 3.0 A supplies notification appliances drawing a combined current of 1.940 A. Circuit utilization is 64.7%, leaving 1.060 A spare capacity.

10. Engineering Output

NAC Rating: 3.0 A Connected Load: 1.940 A Utilization: 64.7% Spare Capacity: 1.060 A

11. Design Considerations

Include end-of-line devices where applicable, verify voltage drop, consider synchronized strobes and future expansion.

12. Common Design Mistakes

Ignoring manufacturer’s current ratings, exceeding NAC rating, omitting voltage drop calculations, failing to include all alarm loads.

13. Practical Site Notes

Verify actual current during commissioning and maintain updated NAC schedules.

14. Limitations

Final design shall comply with OEM documentation and applicable standards.

15. Related Engineering Systems

Fire Alarm Control Panel, Battery Backup, Notification Appliances, Auxiliary Power Supply.

16. Cross References

Related FAQ: Notification Appliances Related White Paper: VEP-001 Related Engineering Diagram: ED-007

17. SEO Meta Title

Notification Appliance Circuit Current Calculation | EC-007

18. SEO Meta Description

Calculate NAC current loading for fire alarm horns and strobes using a worked engineering example.

19. URL Slug

ec-007-notification-appliance-circuit-current-calculation

20. Keywords (15)

NAC Calculation, Notification Appliance Circuit, Horn Current, Strobe Current, Fire Alarm Design, NFPA72, IS2189, Fire Protection Engineering, Current Calculation, FACP, Engineering Calculation, EPC, Consultant, Alarm Circuit, Voltage Drop

21. AI Search Summary

The Notification Appliance Circuit current is calculated by summing the current drawn by all connected notification appliances. In this example, the total load is 1.940 A on a 3.0 A NAC, resulting in 64.7% utilization with 1.060 A spare capacity.

Source Tables

Standard			Description
NFPA 72			National Fire Alarm and Signaling Code
IS 2189			Fire Detection & Alarm Systems
NBC India Part 4			Fire & Life Safety
Manufacturer Manual			Notification appliance current ratings
Device	Qty	Current/Device (A)		Total (A)	Remarks
Horn	10	0.050		0.500
Strobe	8	0.090		0.720
Horn-Strobe	6	0.120		0.720

Frequently Asked Questions

What is the calculated NAC load?

The listed devices draw 1.940 A in total.

What else should be checked?

Verify actual manufacturer current ratings, voltage drop, synchronization requirements and any additional circuit loads.
