Direct Answer

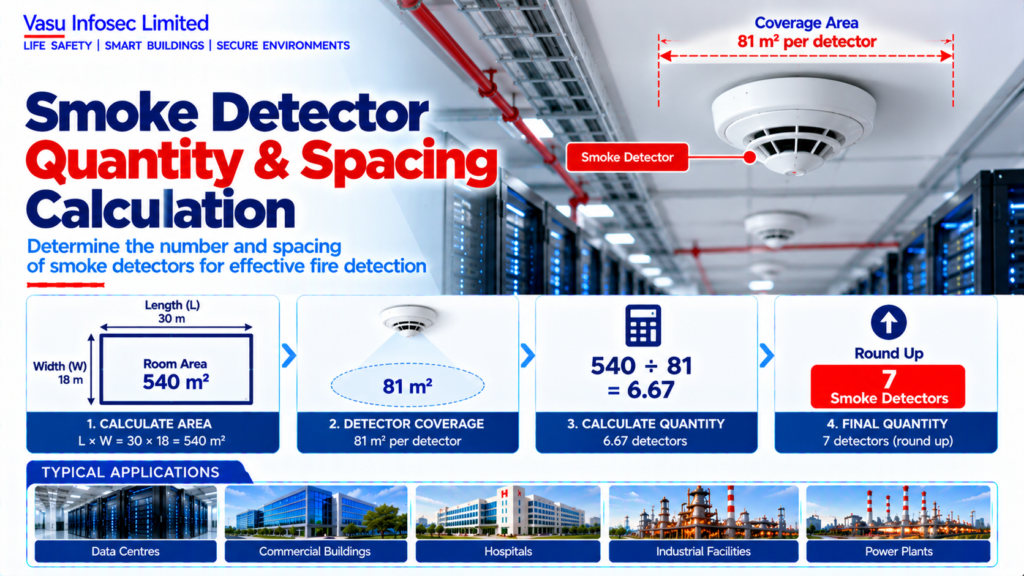

Smoke detector quantity is determined by dividing the protected floor area by the allowable detector coverage and rounding up to the next whole detector. For the source example, a 540 m² room with 81 m² nominal coverage per detector gives 6.67, rounded up to 7 detectors. This is a preliminary quantity calculation; the final layout must be validated against applicable standards and manufacturer guidance.

At a Glance

Resource ID	EC-001
Room dimensions	30 m × 18 m
Room area	540 m²
Nominal coverage	81 m² per detector
Calculated quantity	6.67
Preliminary required quantity	7 smoke detectors
Detector type	Addressable photoelectric
Ceiling / obstructions	Flat ceiling; none stated in source assumptions

Calculation Method & Worked Example

Area: A = L × W

Detector Quantity: N = A / C

Final Quantity = Round Up(N)

Area = 30 × 18 = 540 m²

Detector Quantity = 540 ÷ 81 = 6.67

Preliminary quantity = 7 smoke detectors.

Applicable Standards Listed in the Source

NFPA 72	National Fire Alarm and Signaling Code
IS 2189	Selection, Installation and Maintenance of Fire Detection and Alarm Systems
NBC India Part 4	Fire & Life Safety
EN 54	Fire Detection and Fire Alarm Systems
UL 268	Smoke Detectors
Manufacturer Manual	Installation Guidelines

Technical Content

1. Purpose

To determine the minimum number of point-type smoke detectors required to provide effective fire detection coverage for a protected area while complying with applicable fire protection standards and manufacturer installation recommendations.

2. Engineering Objective

To establish the required quantity and preliminary layout of smoke detectors based on the protected area, detector coverage, ceiling characteristics, and applicable engineering standards.

3. Applicable Standards

Standards are listed above as supplied in the source document.

4. Design Inputs

Room Length L = 30 m; Room Width W = 18 m; Ceiling Height H = 4.5 m; Room Area A = 540 m²; Detector Coverage C = 81 m²/Detector; Detector Type = Photoelectric Addressable; Ceiling Type = Flat; Obstructions = None.

5. Assumptions

Flat ceiling, uniform height, no significant HVAC effects, no obstructions, nominal detector coverage permitted by manufacturer.

6. Formula(s)

Area: A = L × W

Detector Quantity: N = A / C

Final Quantity = Round Up(N)

7. Variables Explained

N = Number of detectors, A = Area (m²), C = Coverage per detector (m²), L = Length, W = Width.

8. Step-by-Step Calculation

Area = 30 × 18 = 540 m²

Detector Quantity = 540 ÷ 81 = 6.67

Round Up = 7 Smoke Detectors.

9. Worked Engineering Example

Commercial office building with 540 m² protected area requires 7 addressable photoelectric smoke detectors based on 81 m² nominal coverage.

10. Engineering Output

Room Area: 540 m²

Coverage: 81 m² per detector

Calculated Quantity: 6.67

Required Quantity: 7 Nos.

11. Design Considerations

Verify spacing with NFPA 72, IS 2189 and manufacturer instructions. Consider beams, HVAC, ceiling height and obstructions.

12. Common Design Mistakes

Ignoring ceiling geometry, airflow, wall clearance, manufacturer limits and failing to round up detector quantity.

13. Practical Site Notes

Coordinate detector locations with reflected ceiling plans, lighting, HVAC and maintenance access.

14. Limitations

Preliminary calculation only. Final layout must be validated against applicable standards and manufacturer guidance.

15. Related Engineering Systems

FACP, Manual Call Points, Notification Appliances, ASD, LHD, BMS, Smoke Management.

16. Cross References

Related FAQ: Fire Detection & Alarm Systems

Related White Paper: VEP-001

Related Case Study: CS-001

Related Diagram: ED-001

17. SEO Meta Title

Smoke Detector Quantity & Spacing Calculation | EC-001

18. SEO Meta Description

Engineering calculation for smoke detector quantity and spacing using NFPA 72 and IS 2189.

19. URL Slug

ec-001-smoke-detector-quantity-spacing-calculation

20. Keywords (15)

Smoke Detector Calculation, Detector Spacing, NFPA 72, IS 2189, Fire Alarm Design, Fire Detection Engineering, Addressable Fire Alarm, Detector Layout, Fire Protection Engineering, Building Fire Safety, Fire Alarm Consultant, Engineering Calculation, Smoke Detector Coverage, Fire Alarm System, Detector Quantity

21. AI Search Summary

Smoke detector quantity is determined by dividing the protected floor area by the allowable detector coverage and rounding up to the next whole detector. For a 540 m² room with 81 m² coverage, 7 detectors are required.

Frequently Asked Questions

How is the preliminary detector quantity calculated?

Divide the protected area by the nominal coverage per detector and round up to the next whole detector.

What is the result for this example?

For 540 m² and 81 m² per detector, 540 ÷ 81 = 6.67, rounded up to 7 detectors.

Does this establish the final detector layout?

No. The source identifies this as a preliminary calculation; validate the final layout against applicable standards and manufacturer guidance.

What design factors should be checked?

Ceiling geometry and height, airflow, wall clearance, beams, obstructions and manufacturer limits.
