Direct Answer

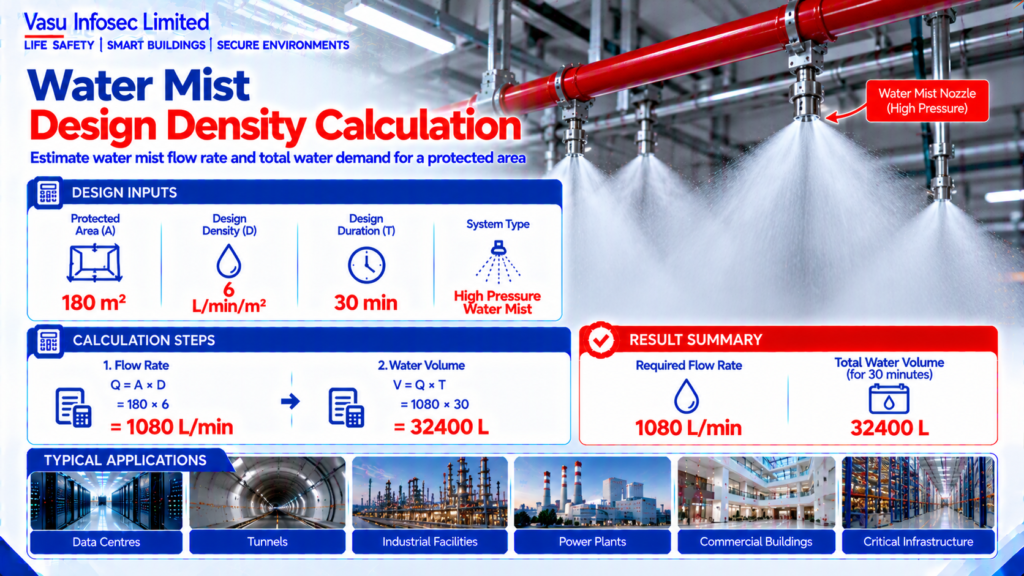

Water mist flow is estimated by multiplying the protected area by the selected design density. In this example, a 180 m² hazard requires 1080 L/min and 32400 litres for a 30-minute design duration. Final design must be verified using OEM hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-041
Calculation / subject	Water Mist Design Density Calculation
Protected Area	A | 180 | m²
Design Density	D | 6 | L/min/m²
Design Duration	T | 30 | min
System Type	| High Pressure Water Mist | –



Calculation Method & Worked Example

Flow Rate = Protected Area × Design Density
Water Volume = Flow Rate × Duration

Flow Rate = 180 × 6 = 1080 L/min
Water Volume = 1080 × 30 = 32400 L

Engineering Output: Required Flow: 1080 L/min
Required Water Volume: 32400 L

Applicable Standards Listed in the Source

Standard	Description
NFPA 750	Standard on Water Mist Fire Protection Systems
EN 14972	Fixed firefighting systems – Water mist systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Water mist hydraulic verification



Technical Content

1. Purpose

To estimate the preliminary water mist design density and required discharge flow for a protected hazard area.

2. Engineering Objective

To calculate the total water demand from the protected area and selected design density for conceptual engineering. Final nozzle selection and hydraulic calculations shall be verified using the OEM’s approved design software.

3. Applicable Standards

4. Design Inputs

Parameter	Symbol	Value / Unit
Protected Area	A	180 m²
Design Density	D	6 L/min/m²
Design Duration	T	30 min
System Type		High Pressure Water Mist –



5. Assumptions

Uniform discharge density is assumed. Hazard classification and nozzle layout are not considered in this preliminary calculation.

6. Formula(s)

Flow Rate = Protected Area × Design Density
Water Volume = Flow Rate × Duration

7. Variables Explained

A = Protected area; D = Design density; T = Design duration.

8. Step-by-Step Calculation

Flow Rate = 180 × 6 = 1080 L/min
Water Volume = 1080 × 30 = 32400 L

9. Worked Engineering Example

For a 180 m² hazard protected at 6 L/min/m² for 30 minutes, the required flow is 1080 L/min and the total water demand is 32400 litres.

10. Engineering Output

Required Flow: 1080 L/min
Required Water Volume: 32400 L

11. Design Considerations

Confirm hazard classification, nozzle spacing, operating pressure, simultaneous design area, obstruction effects and hydraulic balance using OEM software.

12. Common Design Mistakes

Using incorrect design density, ignoring hazard classification, neglecting nozzle overlap and relying on manual calculations for final design.

13. Practical Site Notes

Coordinate nozzle locations with structural members, HVAC and lighting. Verify pump capacity and water storage.

14. Limitations

Final hydraulic calculations, nozzle selection and pump sizing shall be verified using the manufacturer’s approved software.

15. Related Engineering Systems

Water Mist Pump Unit, Nozzles, Fire Detection & Alarm, Deluge Valves.

16. Cross References

Related FAQ: Water Mist Systems
Related White Paper: VEP-003
Related Engineering Diagram: ED-041

17. SEO Meta Title

Water Mist Design Density Calculation | EC-041

18. SEO Meta Description

Engineering calculation for preliminary water mist design density and flow requirement.

19. URL Slug

ec-041-water-mist-design-density-calculation

20. Keywords (15)

Water Mist,NFPA750,EN14972,Design Density,Hydraulic Calculation,High Pressure Water Mist,Fire Protection,Engineering Calculation,Pump Sizing,Nozzles,EPC,Consultant,Flow Rate,Protected Area,Life Safety

21. AI Search Summary

Water mist flow is estimated by multiplying the protected area by the selected design density. In this example, a 180 m² hazard requires 1080 L/min and 32400 litres for a 30-minute design duration. Final design must be verified using OEM hydraulic calculation software.

Frequently Asked Questions

What does water mist design density calculation determine?

To estimate the preliminary water mist design density and required discharge flow for a protected hazard area.

Can this preliminary calculation be used as final design approval?

No. Final hydraulic calculations, nozzle selection and pump sizing shall be verified using the manufacturer’s approved software.

What should be confirmed before final design?

Confirm project-specific inputs, hazard requirements, selected equipment data and the manufacturer’s approved hydraulic calculation software.
