Direct Answer

The preliminary number of water mist nozzles is obtained by dividing the protected area by the nominal nozzle coverage and rounding up. In this example, a 180 m² hazard requires 15 nozzles. Final nozzle quantity and spacing must be verified using OEM hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-042
Calculation / subject	Water Mist Nozzle Quantity Calculation
Protected Area	A | 180 | m²
Coverage per Nozzle	Cn | 12 | m²/nozzle
System Type	| High Pressure Water Mist | –
Ceiling Height	H | 4.5 | m



Calculation Method & Worked Example

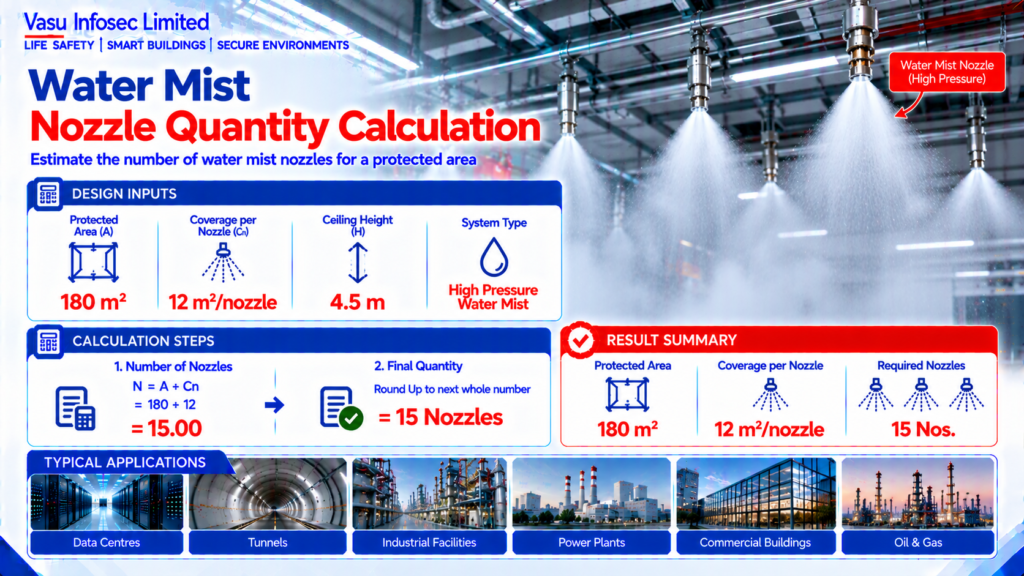

Number of Nozzles = Protected Area ÷ Coverage per Nozzle (Round Up)

Number of Nozzles = 180 ÷ 12 = 15.00
Rounded Up = 15 Nozzles

Engineering Output: Protected Area: 180 m²
Coverage per Nozzle: 12 m²
Required Nozzles: 15 Nos.

Applicable Standards Listed in the Source

Standard	Description
NFPA 750	Standard on Water Mist Fire Protection Systems
EN 14972	Fixed Firefighting Systems – Water Mist
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Nozzle spacing and hydraulic verification



Technical Content

1. Purpose

To estimate the preliminary number of water mist nozzles required to protect a hazard area based on the design area and the nominal coverage of each nozzle.

2. Engineering Objective

To determine the initial nozzle quantity for engineering planning, BOQ preparation and conceptual layout. Final nozzle spacing, pressure and coverage shall be verified using the OEM’s listed hydraulic design software.

3. Applicable Standards

4. Design Inputs

Parameter	Symbol	Value / Unit
Protected Area	A	180 m²
Coverage per Nozzle	Cn	12 m²/nozzle
System Type		High Pressure Water Mist –
Ceiling Height	H	4.5 m



5. Assumptions

Uniform nozzle coverage is assumed. Obstructions, beam pockets, ventilation effects and hazard-specific limitations are not included in this preliminary calculation.

6. Formula(s)

Number of Nozzles = Protected Area ÷ Coverage per Nozzle (Round Up)

7. Variables Explained

A = Protected area (m²); Cn = Nominal coverage per nozzle (m²/nozzle).

8. Step-by-Step Calculation

Number of Nozzles = 180 ÷ 12 = 15.00
Rounded Up = 15 Nozzles

9. Worked Engineering Example

A 180 m² equipment room protected using water mist nozzles with a nominal coverage of 12 m² each requires 15 nozzles before hydraulic optimisation.

10. Engineering Output

Protected Area: 180 m²
Coverage per Nozzle: 12 m²
Required Nozzles: 15 Nos.

11. Design Considerations

Verify nozzle spacing, discharge pressure, overlap, ceiling configuration, obstructions and hazard classification using OEM software.

12. Common Design Mistakes

Using maximum coverage without pressure verification, ignoring obstructions, inconsistent spacing and failing to validate the layout hydraulically.

13. Practical Site Notes

Coordinate nozzle locations with lighting fixtures, HVAC diffusers, cable trays and structural members to maintain effective spray patterns.

14. Limitations

This calculation provides only a preliminary estimate. Final nozzle quantity and layout shall be confirmed using the manufacturer’s approved hydraulic calculation software.

15. Related Engineering Systems

Water Mist Pump Unit, Water Storage Tank, Distribution Piping, Fire Detection & Alarm.

16. Cross References

Related FAQ: Water Mist Nozzles
Related White Paper: VEP-003
Related Engineering Diagram: ED-042

17. SEO Meta Title

Water Mist Nozzle Quantity Calculation | EC-042

18. SEO Meta Description

Engineering calculation for estimating the number of water mist nozzles required for a protected area.

19. URL Slug

ec-042-water-mist-nozzle-quantity-calculation

20. Keywords (15)

Water Mist Nozzle,Nozzle Quantity,NFPA750,EN14972,Water Mist Design,Hydraulic Calculation,Fire Protection,Engineering Calculation,Nozzle Coverage,Pump System,EPC,Consultant,Protected Area,High Pressure Water Mist,Life Safety

21. AI Search Summary

The preliminary number of water mist nozzles is obtained by dividing the protected area by the nominal nozzle coverage and rounding up. In this example, a 180 m² hazard requires 15 nozzles. Final nozzle quantity and spacing must be verified using OEM hydraulic calculation software.

Frequently Asked Questions

What does water mist nozzle quantity calculation determine?

To estimate the preliminary number of water mist nozzles required to protect a hazard area based on the design area and the nominal coverage of each nozzle.

Can this preliminary calculation be used as final design approval?

No. This calculation provides only a preliminary estimate. Final nozzle quantity and layout shall be confirmed using the manufacturer’s approved hydraulic calculation software.

What should be confirmed before final design?

Confirm project-specific inputs, hazard requirements, selected equipment data and the manufacturer’s approved hydraulic calculation software.
