Direct Answer

Water mist pipe diameter is estimated from the required flow rate and design velocity. In this example, a flow of 1242 L/min requires an approximate internal pipe diameter of 81.2 mm. Final pipe sizing must be verified using OEM hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-045
Calculation / subject	Water Mist Pipe Diameter Calculation
Required Flow Rate	Q | 1242 | L/min
Design Velocity	V | 4.0 | m/s
Pipe Material	| SS316 | –
System Type	| High Pressure Water Mist | –



Calculation Method & Worked Example

Flow Area = Flow Rate ÷ Velocity
Diameter = √(4A/π)

Flow Rate = 1242 L/min = 0.02070 m³/s
Area = 0.02070 ÷ 4.0 = 0.005175 m²
Diameter = √(4A/π) = 81.2 mm

Engineering Output: Calculated Internal Diameter: 81.2 mm
Select the next higher standard nominal pipe size after hydraulic verification.

Applicable Standards Listed in the Source

Standard	Description
NFPA 750	Standard on Water Mist Fire Protection Systems
EN 14972	Fixed Firefighting Systems – Water Mist
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Pipe sizing and hydraulic verification



Technical Content

1. Purpose

To estimate the preliminary internal pipe diameter required for a water mist system based on design flow rate and permissible flow velocity.

2. Engineering Objective

To determine an initial pipe diameter for engineering layout, BOQ preparation and conceptual hydraulic design. Final pipe sizing shall be verified using the OEM-approved hydraulic calculation software.

3. Applicable Standards

4. Design Inputs

Parameter	Symbol	Value / Unit
Required Flow Rate	Q	1242 L/min
Design Velocity	V	4.0 m/s
Pipe Material		SS316 –
System Type		High Pressure Water Mist –



5. Assumptions

Steady-state flow and uniform velocity are assumed. Friction losses and pressure variations are excluded from this preliminary calculation.

6. Formula(s)

Flow Area = Flow Rate ÷ Velocity
Diameter = √(4A/π)

7. Variables Explained

Q = Flow rate (m³/s); V = Flow velocity (m/s); A = Pipe flow area; d = Internal pipe diameter.

8. Step-by-Step Calculation

Flow Rate = 1242 L/min = 0.02070 m³/s
Area = 0.02070 ÷ 4.0 = 0.005175 m²
Diameter = √(4A/π) = 81.2 mm

9. Worked Engineering Example

A water mist main carrying 1242 L/min at a design velocity of 4.0 m/s requires an estimated internal pipe diameter of 81.2 mm before selection of the nearest standard nominal pipe size.

10. Engineering Output

Calculated Internal Diameter: 81.2 mm
Select the next higher standard nominal pipe size after hydraulic verification.

11. Design Considerations

Verify friction losses, nozzle operating pressure, branch balancing, pressure surge, pipe schedule and corrosion resistance.

12. Common Design Mistakes

Using excessive flow velocity, undersizing pipework, ignoring pressure losses and selecting pipe sizes without hydraulic calculations.

13. Practical Site Notes

Coordinate routing with structural members, cable trays and HVAC services. Minimize unnecessary bends to reduce pressure loss.

14. Limitations

This is a preliminary engineering calculation only. Final pipe diameter shall be confirmed using the manufacturer’s approved hydraulic calculation software.

15. Related Engineering Systems

High-Pressure Pump Unit, Water Mist Nozzles, Distribution Piping, Fire Detection & Alarm.

16. Cross References

Related FAQ: Water Mist Pipework
Related White Paper: VEP-003
Related Engineering Diagram: ED-045

17. SEO Meta Title

Water Mist Pipe Diameter Calculation | EC-045

18. SEO Meta Description

Engineering calculation for preliminary water mist pipe diameter selection.

19. URL Slug

ec-045-water-mist-pipe-diameter-calculation

20. Keywords (15)

Water Mist Pipe,Pipe Diameter,NFPA750,EN14972,Hydraulic Calculation,Fire Protection,Engineering Calculation,Pipe Sizing,High Pressure Water Mist,SS316,EPC,Consultant,Flow Velocity,Life Safety,Piping

21. AI Search Summary

Water mist pipe diameter is estimated from the required flow rate and design velocity. In this example, a flow of 1242 L/min requires an approximate internal pipe diameter of 81.2 mm. Final pipe sizing must be verified using OEM hydraulic calculation software.

Frequently Asked Questions

What does water mist pipe diameter calculation determine?

To estimate the preliminary internal pipe diameter required for a water mist system based on design flow rate and permissible flow velocity.

Can this preliminary calculation be used as final design approval?

No. This is a preliminary engineering calculation only. Final pipe diameter shall be confirmed using the manufacturer’s approved hydraulic calculation software.

What should be confirmed before final design?

Confirm project-specific inputs, hazard requirements, selected equipment data and the manufacturer’s approved hydraulic calculation software.

SEO & Publishing Details

SEO Meta Title: Water Mist Pipe Diameter Calculation | EC-045

SEO Meta Description: Engineering calculation for preliminary water mist pipe diameter selection.

URL Slug: ec-045-water-mist-pipe-diameter-calculation

Keywords (15): Water Mist Pipe,Pipe Diameter,NFPA750,EN14972,Hydraulic Calculation,Fire Protection,Engineering Calculation,Pipe Sizing,High Pressure Water Mist,SS316,EPC,Consultant,Flow Velocity,Life Safety,Piping

AI Search Summary: Water mist pipe diameter is estimated from the required flow rate and design velocity. In this example, a flow of 1242 L/min requires an approximate internal pipe diameter of 81.2 mm. Final pipe sizing must be verified using OEM hydraulic calculation software.

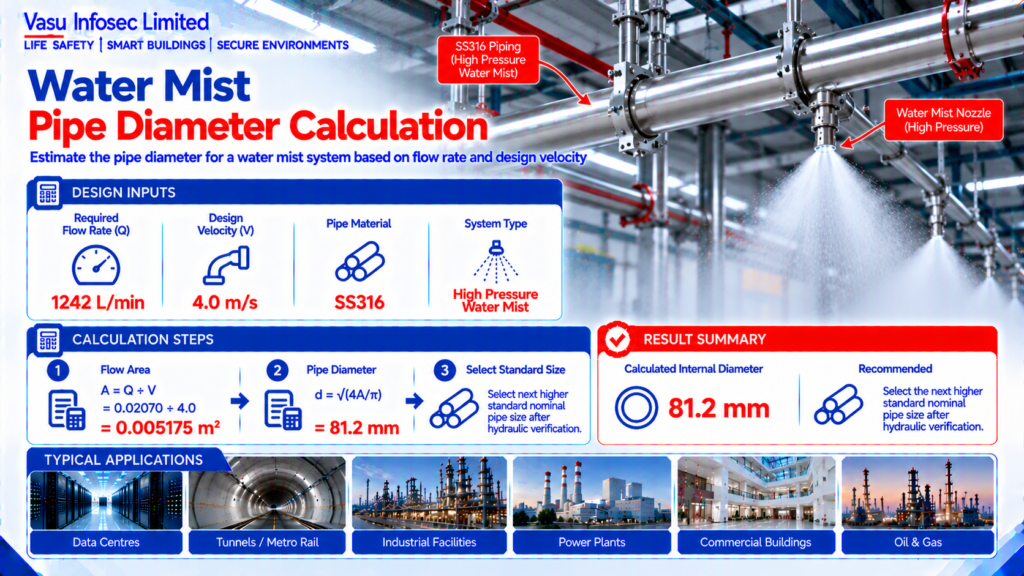

Suggested image alt text: Engineering calculation and worked example for water mist pipe diameter calculation.
