Direct Answer

Water mist pipe pressure loss is estimated from the equivalent pipe length and an assumed pressure-loss rate. In this example, the estimated pressure loss is 14.40 bar. Final hydraulic verification must be completed using OEM-approved software.

At a Glance

Item	Source value / outcome
Resource ID	EC-046
Calculation / subject	Water Mist Pipe Pressure Loss Calculation
Straight Pipe Length	L | 65 | m
Equivalent Fittings Length	Le | 15 | m
Pressure Loss Rate	R | 0.18 | bar/m
Pipe Material	| SS316 | –



Calculation Method & Worked Example

Equivalent Length = L + Le
Pressure Loss = Equivalent Length × R

Equivalent Length = 80 m
Pressure Loss = 80 × 0.18 = 14.40 bar

Engineering Output: Equivalent Length: 80 m
Estimated Pressure Loss: 14.40 bar

Applicable Standards Listed in the Source

Standard	Description
NFPA 750	Water Mist Fire Protection Systems
EN 14972	Water Mist Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Final pressure loss verification



Technical Content

1. Purpose

To estimate the preliminary pressure loss in a water mist distribution pipe for conceptual hydraulic design.

2. Engineering Objective

To calculate an approximate pressure loss through a pipe section before detailed OEM hydraulic verification.

3. Applicable Standards

4. Design Inputs

Parameter	Symbol	Value / Unit
Straight Pipe Length	L	65 m
Equivalent Fittings Length	Le	15 m
Pressure Loss Rate	R	0.18 bar/m
Pipe Material		SS316 –



5. Assumptions

Equivalent fitting lengths are included. Loss rate is assumed for preliminary estimation. Final values shall be verified using OEM hydraulic software.

6. Formula(s)

Equivalent Length = L + Le
Pressure Loss = Equivalent Length × R

7. Variables Explained

L = Straight pipe length; Le = Equivalent fitting length; R = Pressure loss rate.

8. Step-by-Step Calculation

Equivalent Length = 80 m
Pressure Loss = 80 × 0.18 = 14.40 bar

9. Worked Engineering Example

A pipe route with 65 m straight length and 15 m equivalent fittings has an equivalent length of 80 m and an estimated pressure loss of 14.40 bar.

10. Engineering Output

Equivalent Length: 80 m
Estimated Pressure Loss: 14.40 bar

11. Design Considerations

Verify friction losses, nozzle pressure, flow velocity, elevation changes and hydraulic balance.

12. Common Design Mistakes

Ignoring fitting losses, underestimating equivalent length, excessive bends and using preliminary values for final design.

13. Practical Site Notes

Keep routing direct and minimize unnecessary fittings to reduce pressure loss.

14. Limitations

This is a preliminary engineering calculation. Final pressure loss shall be confirmed using the manufacturer’s approved hydraulic calculation software.

15. Related Engineering Systems

Water Mist Pump, Distribution Pipework, Nozzles, Water Storage Tank.

16. Cross References

Related FAQ: Water Mist Pipework
Related White Paper: VEP-003
Related Engineering Diagram: ED-046

17. SEO Meta Title

Water Mist Pipe Pressure Loss Calculation | EC-046

18. SEO Meta Description

Engineering calculation for preliminary water mist pipe pressure loss.

19. URL Slug

ec-046-water-mist-pipe-pressure-loss-calculation

20. Keywords (15)

Water Mist,Pipe Pressure Loss,NFPA750,EN14972,Hydraulic Calculation,Pipework,Pressure Drop,Engineering Calculation,Fire Protection,SS316,EPC,Consultant,Nozzles,Pump,Life Safety

21. AI Search Summary

Water mist pipe pressure loss is estimated from the equivalent pipe length and an assumed pressure-loss rate. In this example, the estimated pressure loss is 14.40 bar. Final hydraulic verification must be completed using OEM-approved software.

Frequently Asked Questions

What does water mist pipe pressure loss calculation determine?

To estimate the preliminary pressure loss in a water mist distribution pipe for conceptual hydraulic design.

Can this preliminary calculation be used as final design approval?

No. This is a preliminary engineering calculation. Final pressure loss shall be confirmed using the manufacturer’s approved hydraulic calculation software.

What should be confirmed before final design?

Confirm project-specific inputs, hazard requirements, selected equipment data and the manufacturer’s approved hydraulic calculation software.

SEO & Publishing Details

SEO Meta Title: Water Mist Pipe Pressure Loss Calculation | EC-046

SEO Meta Description: Engineering calculation for preliminary water mist pipe pressure loss.

URL Slug: ec-046-water-mist-pipe-pressure-loss-calculation

Keywords (15): Water Mist,Pipe Pressure Loss,NFPA750,EN14972,Hydraulic Calculation,Pipework,Pressure Drop,Engineering Calculation,Fire Protection,SS316,EPC,Consultant,Nozzles,Pump,Life Safety

AI Search Summary: Water mist pipe pressure loss is estimated from the equivalent pipe length and an assumed pressure-loss rate. In this example, the estimated pressure loss is 14.40 bar. Final hydraulic verification must be completed using OEM-approved software.

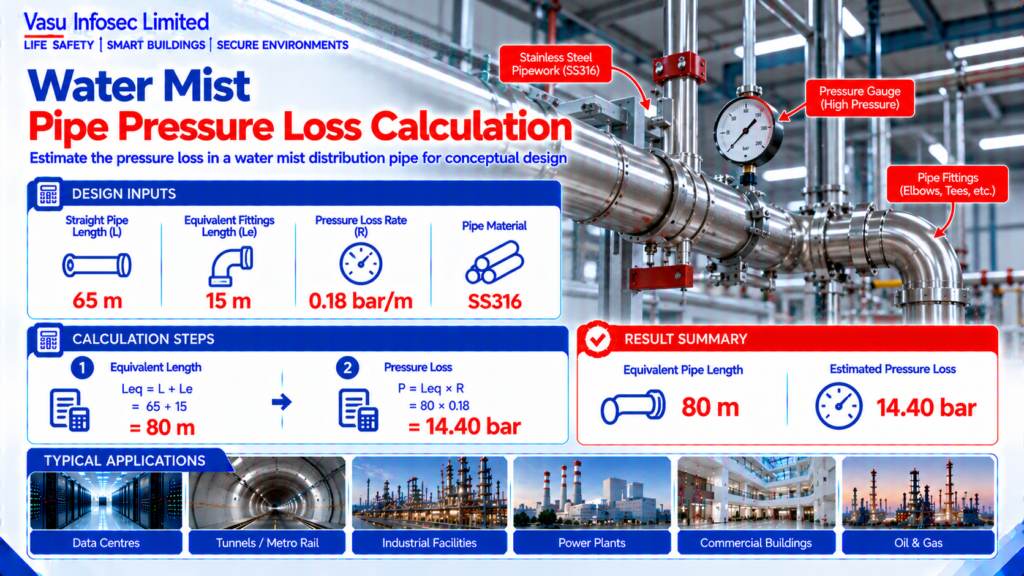

Suggested image alt text: Engineering calculation and worked example for water mist pipe pressure loss calculation.
