Water mist pump flow is calculated by multiplying the protected area by the design density and applying a design margin. In this example, the recommended preliminary pump capacity is 1242 L/min. Final pump selection must be verified using OEM hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-043
Calculation / subject	Water Mist Pump Flow Rate Calculation
Protected Area	A | 180 | m²
Design Density	D | 6 | L/min/m²
Safety Margin	SF | 15 | %
System Type	| High Pressure Water Mist | –

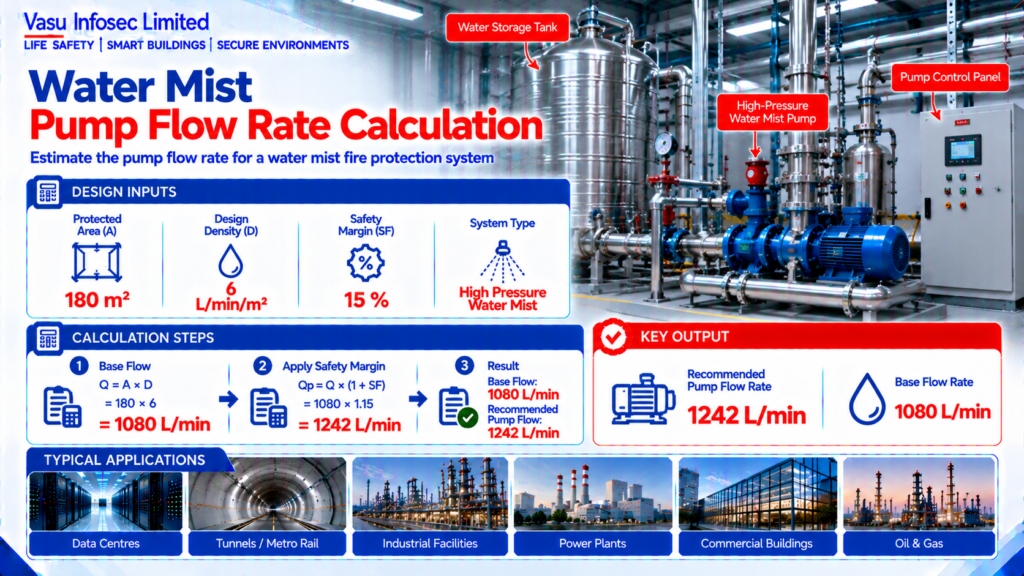

Calculation Method & Worked Example

Base Flow = Protected Area × Design Density
Required Pump Flow = Base Flow × (1 + Safety Margin)

Base Flow = 180 × 6 = 1080 L/min
Required Pump Flow = 1080 × 1.15 = 1242 L/min

Engineering Output: Base Flow: 1080 L/min
Recommended Pump Flow: 1242 L/min

Applicable Standards Listed in the Source

Standard	Description
NFPA 750	Water Mist Fire Protection Systems
EN 14972	Water Mist Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Pump sizing verification



Technical Content

1. Purpose

To estimate the preliminary pump flow rate required for a water mist fire protection system based on design density and protected area.

2. Engineering Objective

To determine the minimum pump discharge flow for conceptual design and equipment selection. Final pump sizing shall be confirmed using OEM hydraulic calculations.

3. Applicable Standards

4. Design Inputs

Parameter	Symbol	Value / Unit
Protected Area	A	180 m²
Design Density	D	6 L/min/m²
Safety Margin	SF	15 %
System Type		High Pressure Water Mist –



5. Assumptions

The full design area operates simultaneously. A 15% engineering margin is included. Final pump duty shall be verified using the manufacturer’s hydraulic software.

6. Formula(s)

Base Flow = Protected Area × Design Density
Required Pump Flow = Base Flow × (1 + Safety Margin)

7. Variables Explained

A = Protected area; D = Design density; SF = Safety margin.

8. Step-by-Step Calculation

Base Flow = 180 × 6 = 1080 L/min
Required Pump Flow = 1080 × 1.15 = 1242 L/min

9. Worked Engineering Example

A 180 m² hazard protected at 6 L/min/m² requires a base flow of 1080 L/min. Including a 15% design margin, the recommended pump capacity is 1242 L/min.

10. Engineering Output

Base Flow: 1080 L/min
Recommended Pump Flow: 1242 L/min

11. Design Considerations

Verify operating pressure, simultaneous demand, nozzle pressure, pipe losses, pump curve, NPSH and water storage.

12. Common Design Mistakes

Ignoring safety margin, selecting pumps without hydraulic verification, overlooking pressure requirements and future expansion.

13. Practical Site Notes

Coordinate pump capacity with water storage, power supply and controller ratings.

14. Limitations

This is a preliminary engineering calculation only. Final pump selection shall be based on OEM-approved hydraulic calculations.

15. Related Engineering Systems

Water Storage Tank, High-Pressure Pump Unit, Water Mist Nozzles, Fire Detection & Alarm.

16. Cross References

Related FAQ: Water Mist Pumps
Related White Paper: VEP-003
Related Engineering Diagram: ED-043
