Direct Answer

Water mist pump pressure is estimated by adding the required nozzle pressure, pipe friction losses, elevation losses and an engineering safety margin. In this example, the preliminary pump pressure requirement is 125 bar. Final pump selection must be verified using OEM hydraulic calculation software.

At a Glance

Item	Source value / outcome
Resource ID	EC-044
Calculation / subject	Water Mist Pump Pressure Calculation
Required Nozzle Pressure	Pn | 100 | bar
Pipe Friction Loss	Pf | 12 | bar
Elevation Loss	Pe | 3 | bar
Safety Margin	Sm | 10 | bar



Calculation Method & Worked Example

Pump Pressure = Nozzle Pressure + Pipe Loss + Elevation Loss + Safety Margin

Pump Pressure = 100 + 12 + 3 + 10 = 125 bar

Engineering Output: Recommended Preliminary Pump Pressure: 125 bar

Applicable Standards Listed in the Source

Standard	Description
NFPA 750	Water Mist Fire Protection Systems
EN 14972	Water Mist Systems
NBC India Part 4	Fire & Life Safety
OEM Hydraulic Software	Pump pressure verification



Technical Content

1. Purpose

To estimate the preliminary pump discharge pressure required for a water mist fire protection system by considering nozzle operating pressure, pipe losses and elevation head.

2. Engineering Objective

To determine the minimum pump pressure for conceptual equipment selection. Final pressure shall be confirmed using the OEM’s approved hydraulic calculation software.

3. Applicable Standards

4. Design Inputs

Parameter	Symbol	Value / Unit
Required Nozzle Pressure	Pn	100 bar
Pipe Friction Loss	Pf	12 bar
Elevation Loss	Pe	3 bar
Safety Margin	Sm	10 bar



5. Assumptions

Worst-case hydraulically remote nozzle is considered. Pressure losses are preliminary estimates only. Final values require OEM hydraulic software.

6. Formula(s)

Pump Pressure = Nozzle Pressure + Pipe Loss + Elevation Loss + Safety Margin

7. Variables Explained

Pn = Nozzle pressure; Pf = Pipe friction loss; Pe = Elevation loss; Sm = Safety margin.

8. Step-by-Step Calculation

Pump Pressure = 100 + 12 + 3 + 10 = 125 bar

9. Worked Engineering Example

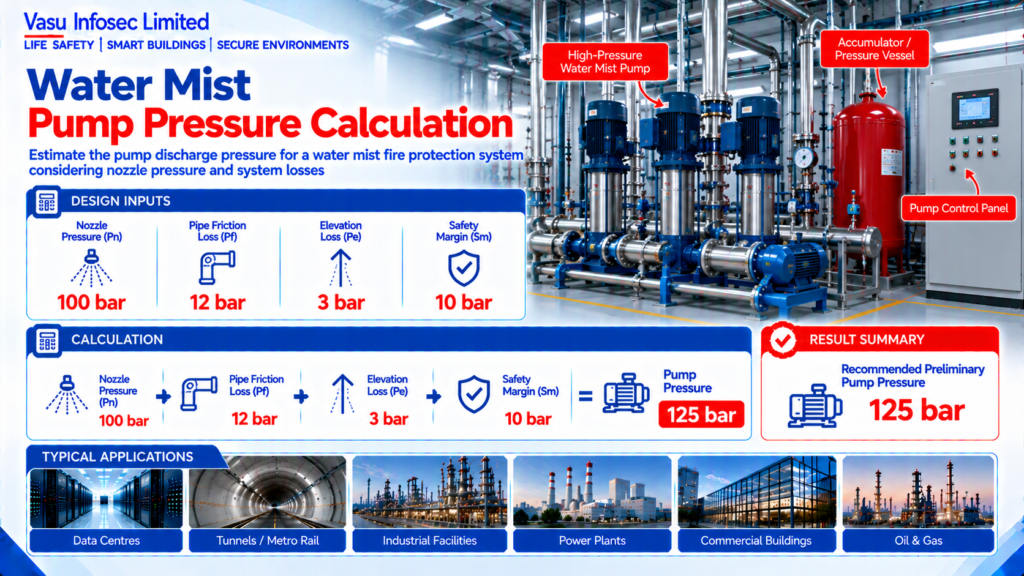

A system requiring 100 bar at the nozzle with estimated pipe losses of 12 bar, elevation losses of 3 bar and a 10 bar engineering margin requires a pump pressure of 125 bar.

10. Engineering Output

Recommended Preliminary Pump Pressure: 125 bar

11. Design Considerations

Verify nozzle operating pressure, pressure losses, simultaneous demand, pump curve, NPSH and pressure relief provisions.

12. Common Design Mistakes

Ignoring elevation losses, underestimating friction loss, omitting safety margin and selecting pumps without hydraulic verification.

13. Practical Site Notes

Coordinate pump rating with motor power, controller settings and pressure vessel requirements.

14. Limitations

This calculation is for preliminary engineering only. Final pump pressure shall be verified using the manufacturer’s approved hydraulic calculation software.

15. Related Engineering Systems

High-Pressure Pump Unit, Water Mist Nozzles, Water Storage Tank, Fire Detection & Alarm.

16. Cross References

Related FAQ: Water Mist Pumps
Related White Paper: VEP-003
Related Engineering Diagram: ED-044

17. SEO Meta Title

Water Mist Pump Pressure Calculation | EC-044

18. SEO Meta Description

Engineering calculation for preliminary water mist pump pressure selection.

19. URL Slug

ec-044-water-mist-pump-pressure-calculation

20. Keywords (15)

Water Mist Pump, Pump Pressure, NFPA750, EN14972, Hydraulic Calculation, High Pressure Water Mist, Fire Protection, Engineering Calculation, Nozzle Pressure, Pump Sizing, EPC, Consultant, Life Safety, Pressure Loss, Water Mist

21. AI Search Summary

Water mist pump pressure is estimated by adding the required nozzle pressure, pipe friction losses, elevation losses and an engineering safety margin. In this example, the preliminary pump pressure requirement is 125 bar. Final pump selection must be verified using OEM hydraulic calculation software.

Frequently Asked Questions

What does water mist pump pressure calculation determine?

To estimate the preliminary pump discharge pressure required for a water mist fire protection system by considering nozzle operating pressure, pipe losses and elevation head.

Can this preliminary calculation be used as final design approval?

No. This calculation is for preliminary engineering only. Final pump pressure shall be verified using the manufacturer’s approved hydraulic calculation software.

What should be confirmed before final design?

Confirm project-specific inputs, hazard requirements, selected equipment data and the manufacturer’s approved hydraulic calculation software.
